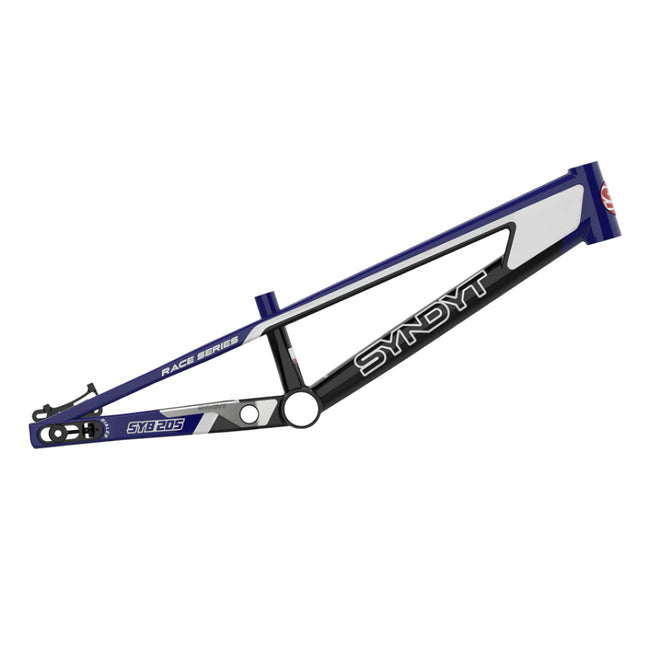

Syndyt SYB Alloy BMX Race Frame-Blue

The Syndyt SYB Alloy BMX Race Frame-Blue is built for speed, strength, and precise control on the track. Constructed from custom 6061 alloy with hydroformed, triple-butted tubing, it delivers an ideal balance of lightweight feel and reliable stiffness. Oversized junctions enhance power transfer, while integrated chain tensioners and multi-size axle compatibility let you fine-tune your setup with ease. This frame offers a race-ready platform for riders who want sharp handling and solid performance lap after lap.

Image for reference only. Your order will be fulfilled with the selected frame size.

FEATURES

• 6061-T6 Aluminum

• 110mm O.L.D. Rear Hub Spacing

• Disc Only, Post Mount, 140mm Rotor

• Internal Rear Brake Cable Routing

• Integrated Chain Tensioner (38mm of Adjustment)

• Includes Axle Hardware for 10mm Bolt-On and 15mm Thru Axle (Pro Sizes also include 20mm)

• Includes Headset (Mini–Expert XL: for 1" and Tapered 1"–1 1/8", Pro Sizes: for Tapered 1 1/8"–1.5")

• Integrated Head Tube

• Designed for European BB (Pro sizes include adaptors)

SPECIFICATIONS

MINI (17.5" TT)

• Tapered 38/42 Head Tube

• 22.2 Seat Post / 25.4 Clamp

• 68mm European BB

• Frame Width for 15mm Thru Axle: 152mm

• Weight: 2.70 lbs / 1225 g

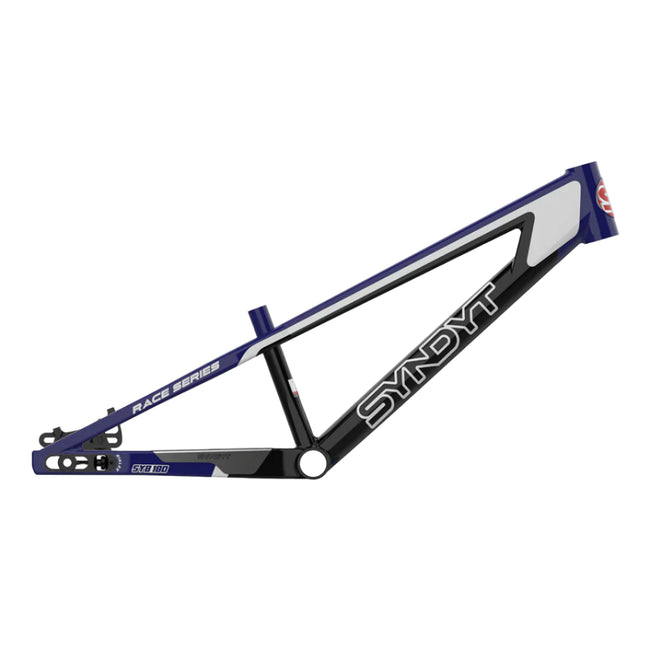

MINI XL (18" TT)

• Tapered 38/42 Head Tube

• 22.2 Seat Post / 25.4 Clamp

• 68mm European BB

• Frame Width for 15mm Thru Axle: 152mm

• Weight: 2.75 lbs / 1250 g

JUNIOR (18.5" TT)

• Tapered 38/42 Head Tube

• 22.2 Seat Post / 25.4 Clamp

• 68mm European BB

• Frame Width for 15mm Thru Axle: 152mm

• Weight: 2.81 lbs / 1275 g

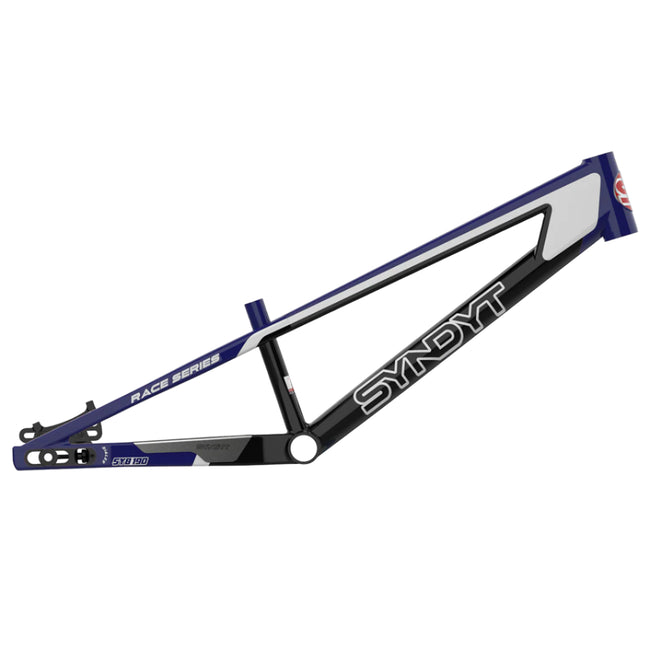

JUNIOR XL (19" TT)

• Tapered 38/42 Head Tube

• 22.2 Seat Post / 25.4 Clamp

• 68mm European BB

• Frame Width for 15mm Thru Axle: 152mm

• Weight: 2.86 lbs / 1300 g

EXPERT (19.5" TT)

• Tapered 38/42 Head Tube

• 22.2 Seat Post / 25.4 Clamp

• 68mm European BB

• Frame Width for 15mm Thru Axle: 152mm

• Weight: 2.98 lbs / 1350 g

EXPERT XL (20" TT)

• Tapered 38/42 Head Tube

• 22.2 Seat Post / 25.4 Clamp

• 68mm European BB

• Frame Width for 15mm Thru Axle: 152mm

• Weight: 3.08 lbs / 1400 g

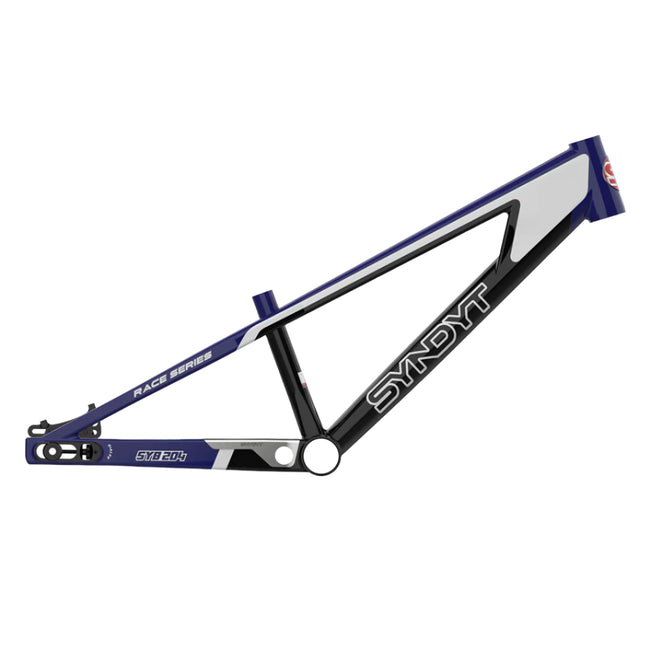

PRO 24 (20.5" TT)

• Tapered 42/52 Head Tube

• 27.2 Seat Post / 31.8 Clamp

• B52 BB Shell

• Frame Width: 173mm (15mm TA), 163mm (20mm TA)

• Weight: 4.25 lbs / 1927 g

PRO (20.5" TT)

• Tapered 42/52 Head Tube

• 27.2 Seat Post / 31.8 Clamp

• B52 BB Shell

• Frame Width: 173mm (15mm TA), 163mm (20mm TA)

• Weight: 3.99 lbs / 1810 g

PRO XL (21" TT)

• Tapered 42/52 Head Tube

• 27.2 Seat Post / 31.8 Clamp

• B52 BB Shell

• Frame Width: 173mm (15mm TA), 163mm (20mm TA)

• Weight: 4.05 lbs / 1837 g

PRO XXL (21.5" TT)

• Tapered 42/52 Head Tube

• 27.2 Seat Post / 31.8 Clamp

• B52 BB Shell

• Frame Width: 173mm (15mm TA), 163mm (20mm TA)

• Weight: 4.1 lbs / 1859 g

PRO XXXL (22" TT)

• Tapered 42/52 Head Tube

• 27.2 Seat Post / 31.8 Clamp

• B52 BB Shell

• Frame Width: 173mm (15mm TA), 163mm (20mm TA)

• Weight: 4.15 lbs / 1882 g

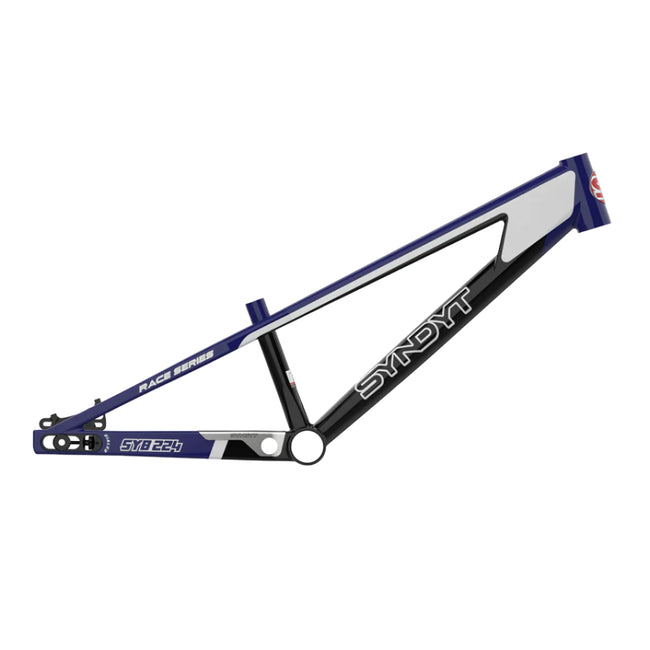

PRO XXXL 24 (22" TT)

• Tapered 42/52 Head Tube

• 27.2 Seat Post / 31.8 Clamp

• B52 BB Shell

• Frame Width: 173mm (15mm TA), 163mm (20mm TA)

• Weight: 4.30 lbs / 1950 g

PRO XXXXL (22.5" TT)

• Tapered 42/52 Head Tube

• 27.2 Seat Post / 31.8 Clamp

• B52 BB Shell

• Frame Width: 173mm (15mm TA), 163mm (20mm TA)

• Weight: 4.19 lbs / 1900 g

GEOMETRY
