About This Product: Supercross Envy V5 BMX Race Frame-Mirror Polished/Blue Stickers

The Supercross Envy V5 BMX race frames use the same World Championship winning geometry as the V3 but with a new 7005 Ultra Lite Race Triple Butted tube set.  The V5 also features brand new molds for the top and down tube to increase strength and rigidity as well as maximizing dent resistance.  The top tube and down tubes are larger at the head tube to better support the all new 1-1/8"  - 1.5" tapered head tube, the center sections are thicker and the downtube is wider at the bottom bracket shell to enhance pedaling efficiency and overall frame stiffness. See the full specs for more.

SPECS

*7005 Ultra Lite Race Triple Butted tube set
*New top tube and down tube molds to improve strength and rigidity
*Thicker top and down tube in areas to prevent dents
*Down tube wider at bottom bracket shell to increase stiffness

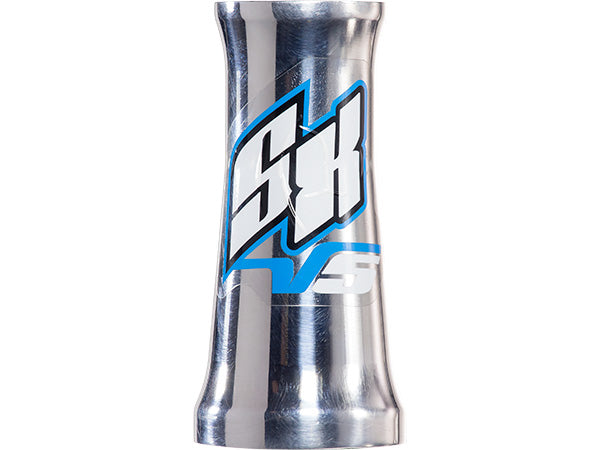

*All new 1-1/8" - 1.5" tapered head tube
*Wider tube set at tapered head tube for added stiffness

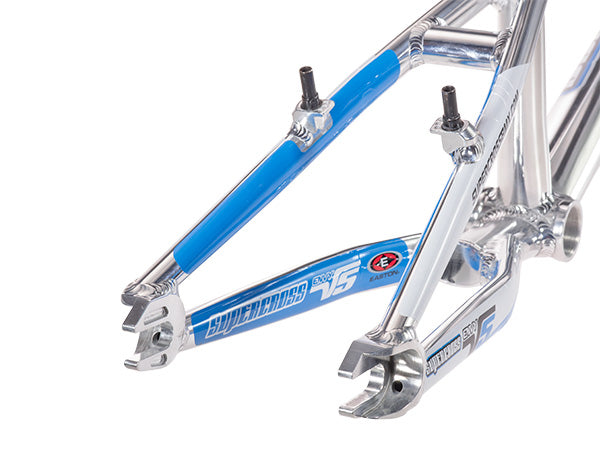

*Tapered and butted chainstays
*Seatmast is wider and bulge butted

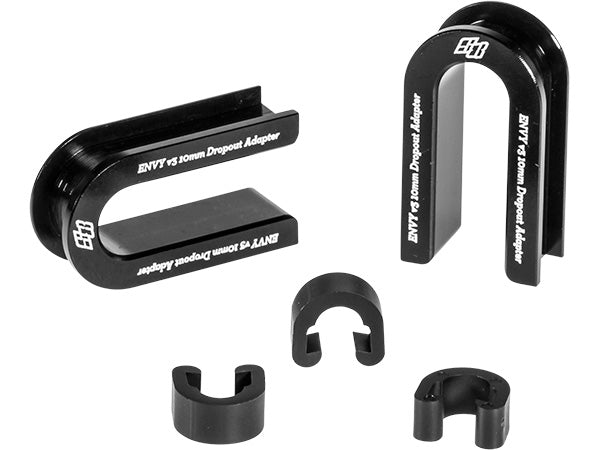

*15mm drop-outs with adapters for 3/8" (10mm) axles included
*New graphics and color options for 2014

HEADSET REQUIREMENT SPECS:
Mini - Expert XXL: 1-1/8" integrated 45°/45°. Use step down headset for 1" forks
Pro and larger: 1-1/8" - 1.5" features an oversized 1.5" bottom bearing.
*For use with New tapered 1.5" forks or use the SINZ Integrated 1-1/8" - 1.5" headset for use with 1-1/8" forks.

USE
: Race
MATERIAL: 7005 aluminum
BRAKE MOUNTS: V-Brake
BB SHELL: Euro
TT: Top Tube | CS: Chain Stay | SA: Seat Angle | HA: Head Angle

GEOMETRY SPECS:
Size TT CS HA SA BB HEIGHT Post Size Fork
Wheel Size Weight
Micro 16.75" 12.0" 72º 70º 10.3" 22.2mm 1 1/8" Threadless 20 X 1 2lbs
Mini 17.5" 12.25" 72º 70º 10.7" 22.2mm 1 1/8" Threadless 20 X 1 1/8 2lbs 1oz
Jr. 18.5" 12.5" 73.5º 70º 10.7" 22.2mm 1 1/8" Threadless 20 X 1 1/8 2lbs 2oz
Jr. Plus 19" 12.5" 73.5º 70º 10.7" 22.2mm 1 1/8" Threadless 20 X 1 1/8 2lbs 3oz
Expert 19.5" 13.75" 74º 70º 11.2" 22.2mm 1 1/8" Threadless 20 X 1 3/8 2lbs 5oz
Expert XL 20" 14.0" 74º 70º 11.2" 22.2mm 1 1/8" Threadless 20 X 1 3/8 2lbs 6.5oz
Expert XXL 21" 14.0" 74.5º 70º 11.2" 22.2mm 1 1/8" Threadless 20 X 1 3/8 2lbs 8.8oz
Pro 20.5" 15.0" 74.5º 70º 11.6" 27.2mm 1 1/8" - 1.5" Tapered 20 X 1.75 2lbs 12oz
Pro Plus 20.75" 15.0" 74.5º 70º 11.6" 27.2mm 1 1/8" - 1.5" Tapered 20 X 1.75 2lbs 13oz
Pro XL 21.25" 15.2" 74.5º 70º 11.6" 27.2mm 1 1/8" - 1.5" Tapered 20 X 1.75 2lbs 14.8oz
Pro XXL 21.75" 15.2" 74.5º 70º 11.6" 27.2mm 1 1/8" - 1.5" Tapered 20 X 1.75 2lbs 15.8oz
Junior 24" 19.25" 14.2" 73.5º 69.3º 11.2" 22.2mm 1 1/8" Threadless 24 X 1 1/8 2lbs 2oz
Expert 24" 20.5" 15" 73.5º 69.3º 11.2" 22.2mm 1 1/8" Threadless 24 X 1 3/8 2lbs 8.8oz
Pro Short 24" 20.5" 14.75" 73.5º 70º 11.6" 27.2mm 1 1/8" - 1.5" Tapered 24 X 1.5 2lbs 15oz
Pro 24" 21.5" 15.3" 73.5º 70º 11.6" 27.2mm 1 1/8" - 1.5" Tapered 24 X 1.75 2lbs 15.8oz
Pro XL 24" 22" 15.3" 73.5º 70º 11.6" 27.2mm 1 1/8" - 1.5" Tapered 24 X 1.75 3lbs 1.2oz

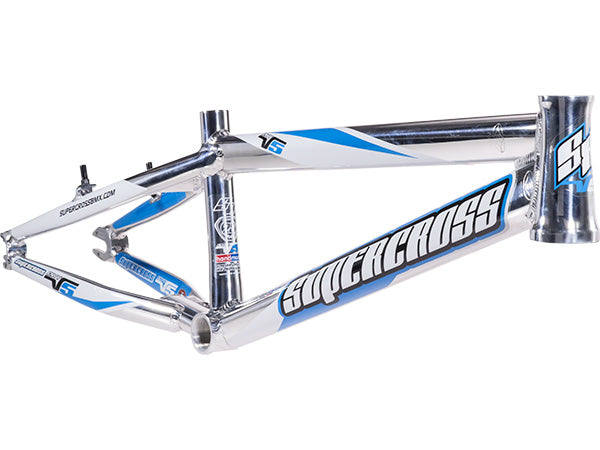

Photo of frame is same model and color but not necessarily the same size.

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
