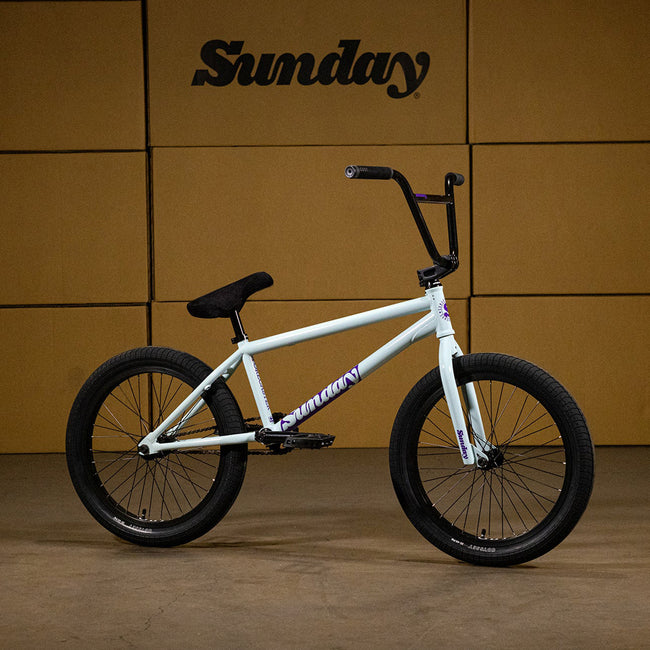

Sunday Forecaster LHD 21"TT BMX Bike-Broc Raiford Signature-Gloss Sky Blue

The Sunday Forecaster LHD 21"TT BMX Bike-Broc Raiford Signature-Gloss Sky Blue is built to ride hard with pro-level performance right out of the box. With a full chromoly frame, fully sealed hubs, and removable brake hardware, it's ready for everything from technical street lines to big transitions. Broc Raiford's signature parts package includes Odyssey BROC grips and seat, a Clutch v2 Freecoaster hub, Stage 1 rims, Path Pro tires, and Twisted Pro pedals for the feel and durability serious riders expect.

NOTE: As with any complete bike, J&R Bicycles recommends that you have a professional bicycle store build your bike. Bikes ordered through mail-order come partially assembled and need to be inspected and assembled by a bicycle mechanic. Failure to do so may void the manufacturer's warranty. Manufacturers' warranties differ for every brand. You can check the brand's website for warranty information.

SPECIFICATIONS

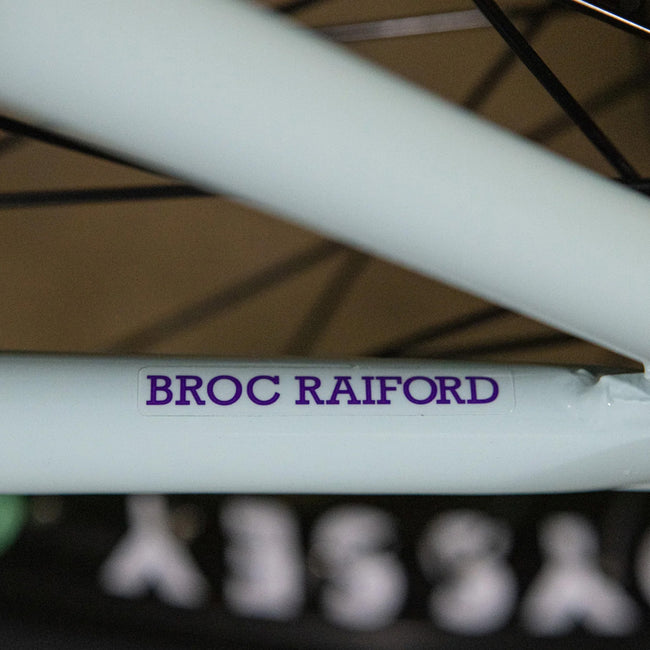

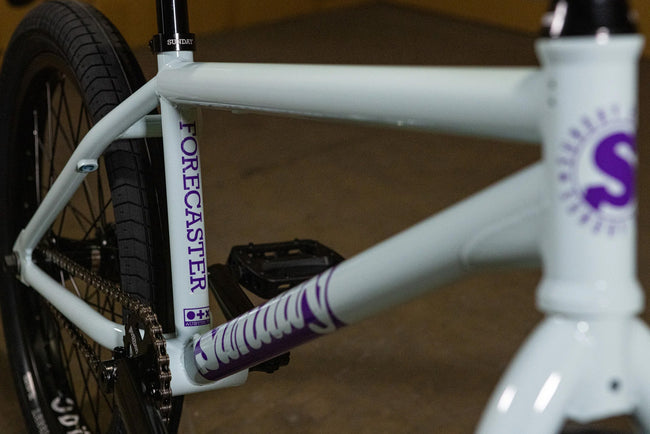

• FRAME: Sunday Forecaster, 21" TT, 100% chromoly frame with integrated 1-1/8" head tube, removable brake hardware
• HEADSET: FSA Integrated Conical, 1-1/8"
• BB: Sealed Mid, 19mm

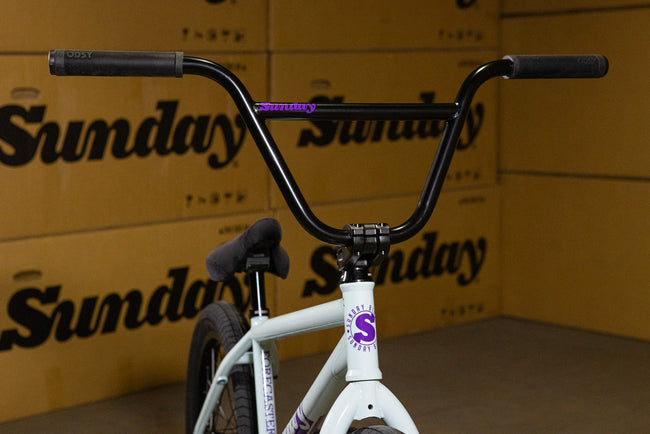

• BARS: Sunday 2-Piece
• FORK: Sunday Forecaster, 20", 2-piece chromoly steerer tube with welded pre-load
• STEM: Sunday Freeze Front Load, 48mm
• GRIPS: Odyssey Broc Raiford

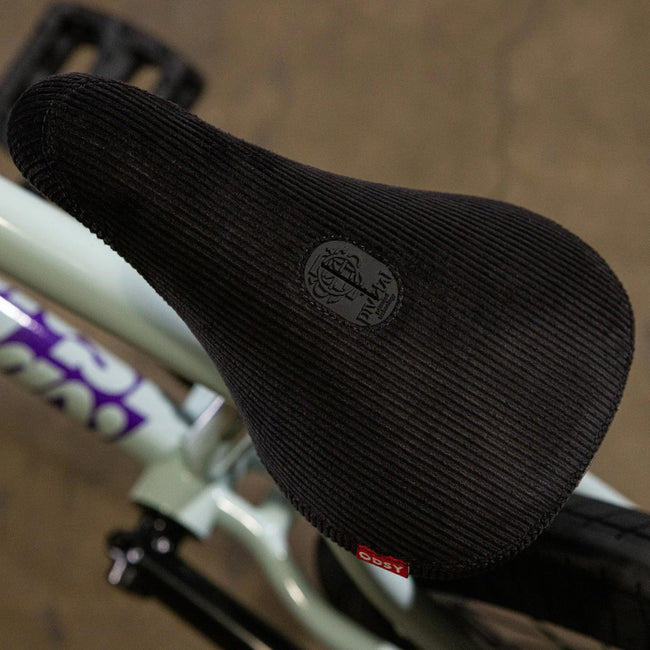

• SEAT: Odyssey Broc Raiford Signature, Pivotal
• SEAT POST: Sunday Pivotal
• CRANKS: 170mm, 3-piece chromoly
• CHAINRING: Sunday Sabertooth v2, 25T Steel
• PEDALS: Odyssey Twisted PC Pro

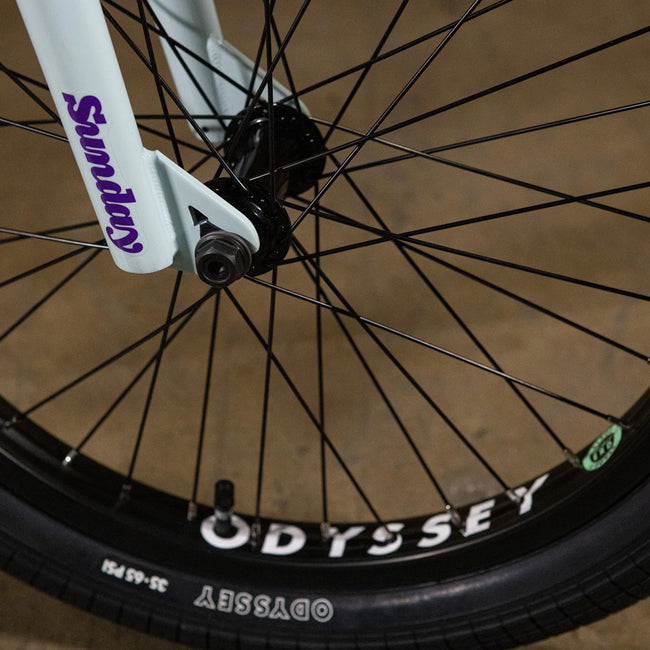

• FRONT HUB: Sunday 36H, Low-Flange, Sealed, 3/8" Inbound Axle Bolts

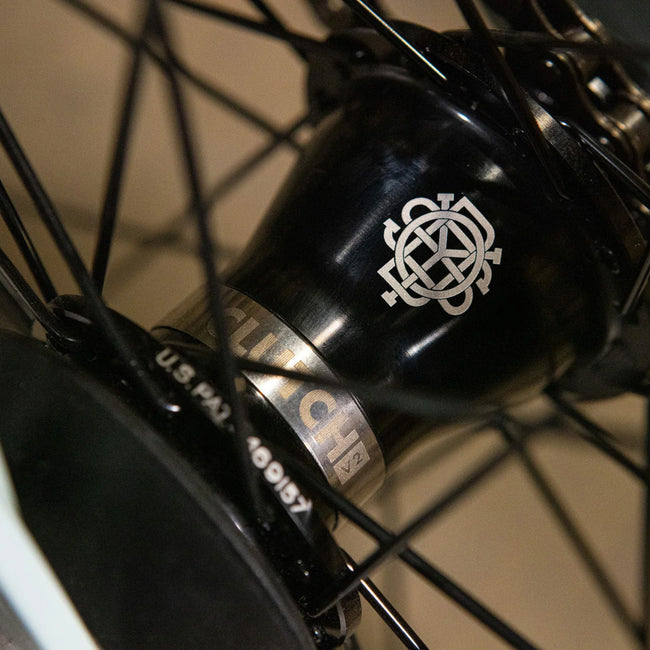

• REAR HUB: Odyssey Clutch v2 Freecoaster, 36H, 14mm Inbound Axle Bolts, 9T Driver, LHD, Non-Drive Side Plastic Guard
• RIMS: Odyssey Stage 1, 20", 36H
• TIRES: Odyssey Path Pro OEM, 20" x 2.4" Front & Rear
• BRAKES: Odyssey Springfield U-Brake, Odyssey Springfield Lever, Odyssey Quik Slic Cable
• WEIGHT: Approx. 26.78 lbs (with brakes)
• CHAIN: KMC Z1 Wide

FRAME GEOMETRY

• Top Tube: 21"
• Head Tube Angle: 75.5°
• Seat Tube Angle: 71°
• Chainstay Length: 13.2"-13.5"
• Bottom Bracket Height: 11.7"
• Standover: 9"

HANDLEBAR GEOMETRY

• Rise: 9"
• Width: 28.5"
• Backsweep: 12°
• Upsweep: 4°
