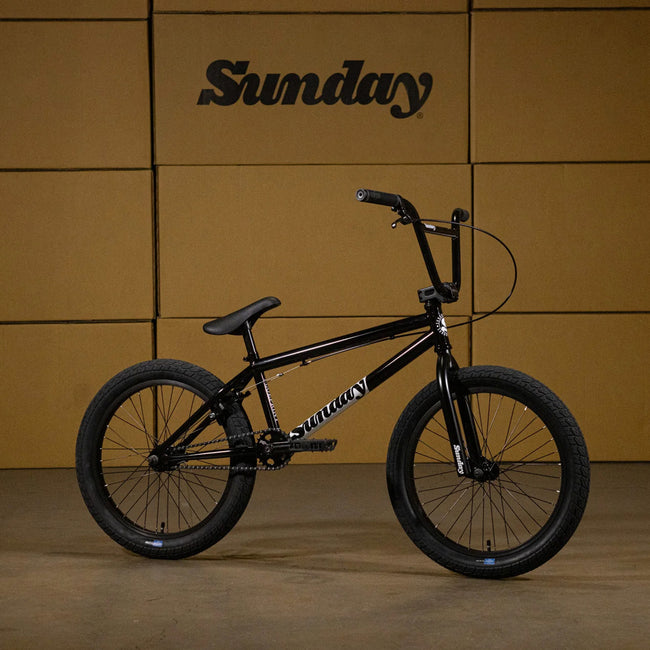

Sunday Blueprint 20.5"TT BMX Freestyle Bike-Gloss Black

The Sunday Blueprint 20.5"TT BMX Freestyle Bike-Gloss Black is built to get new riders rolling with pro-inspired style from day one. Its proven geometry makes learning new tricks feel natural, while durable components let you spend more time riding and less time on maintenance. With Odyssey Springfield brakes, a Sunday Freeze stem, an integrated headset, and wide 2.4" tires, the Blueprint delivers the performance and reliability needed to keep progression moving.

NOTE: As with any complete bike, J&R Bicycles recommends that you have a professional bicycle store build your bike. Bikes ordered through mail-order come partially assembled and need to be inspected and assembled by a bicycle mechanic. Failure to do so may void the manufacturer's warranty. Manufacturers' warranties differ for every brand. You can check the brand's website for warranty information.

SPECIFICATIONS

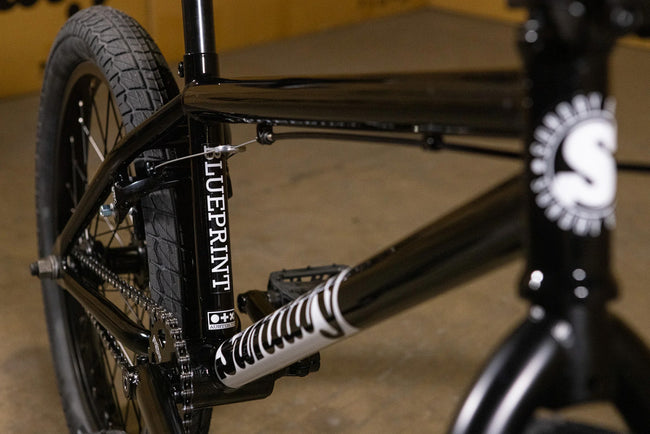

• FRAME: Sunday Blueprint, 20.5" TT, Integrated 1-1/8" Head Tube
• HEADSET: FSA Integrated, 1-1/8"
• BB: Loose-Ball American, 19mm

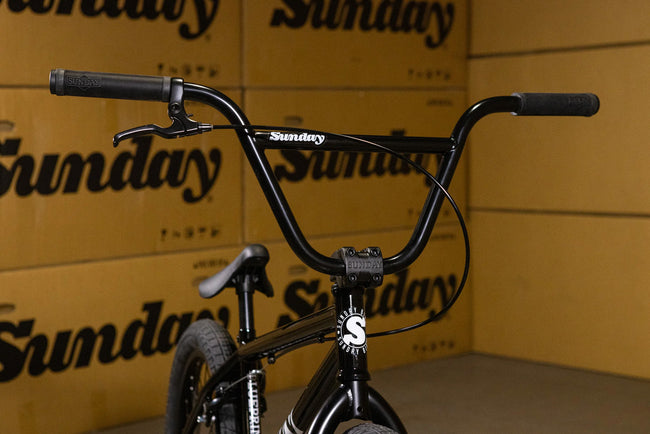

• BARS: Sunday 2-Piece
• FORK: Sunday Blueprint, 20", 2-Piece Steerer Tube with Welded Pre-Load
• STEM: Sunday Freeze Front Load, 48mm
• GRIPS: Sunday Cornerstone
• SEAT: Sunday Badge Seat/Post Combo
• SEAT POST: Integrated
• CRANKS: 160mm, 3-Piece Chromoly
• CHAINRING: Sunday Sabretooth v2, 25T Steel
• PEDALS: FPD Platform Plastic
• FRONT HUB: Sunday 36H, Low-Flange, Loose-Ball, 3/8" Axle
• REAR HUB: Sunday 36H, 14mm Axle with 9T Driver
• RIMS: P-7X Aluminum, 20", 36H
• TIRES: Sunday OEM, 20" x 2.4" (Front & Rear)
• BRAKES: Odyssey Springfield U-Brake, Aluminum Lever, Odyssey Quik Slic Cable
• WEIGHT: Approx. 26 lbs (with Brakes)
• CHAIN: KMC S1

FRAME GEOMETRY

• Top Tube: 20.5"
• Head Tube Angle: 75°
• Seat Tube Angle: 71°
• Chainstay Length: 13.2"-13.5"
• Bottom Bracket Height: 11.5"
• Standover: 8.75"

HANDLEBAR GEOMETRY

• Rise: 9"
• Width: 28.5"
• Backsweep: 12°
• Upsweep: 4°
