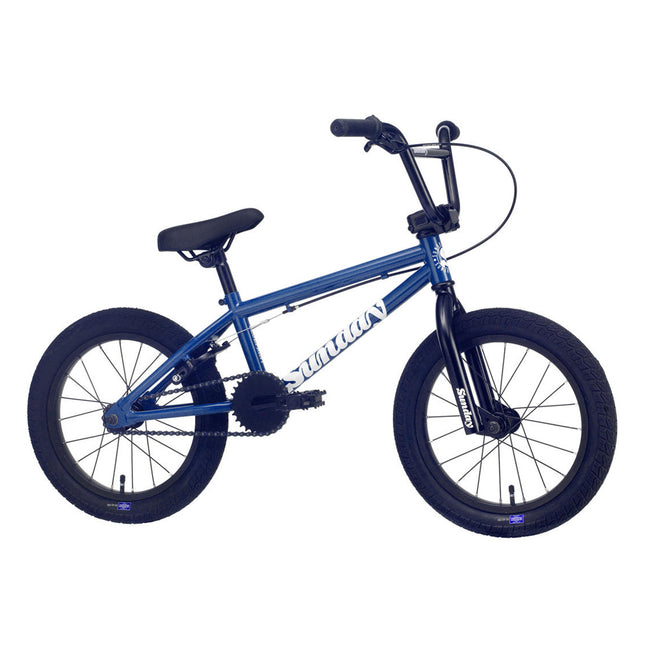

Sunday Blueprint 16" BMX Freestyle Bike-Gloss Sunday Blue

The Sunday Blueprint 16" BMX Freestyle Bike-Gloss Sunday Blue is built to help young riders gain confidence and have fun on two wheels. Designed with simplicity and reliability in mind, it features an adjustable seat and easy-to-use Odyssey Springfield brakes for a perfect fit and smooth control. With durable Sunday Current tires and a 13t Odyssey freewheel, this bike is ready for endless sessions at the park or around the neighborhood.

NOTE: As with any complete bike, J&R Bicycles recommends that you have a professional bicycle store build your bike. Bikes ordered through mail-order come partially assembled and need to be inspected and assembled by a bicycle mechanic. Failure to do so may void the manufacturer's warranty. Manufacturers’ warranties differ for every brand. You can check the brand's website for warranty information.

FEATURES

• Adjustable Junior Saddle
• Sunday Current 16" Tires
• 13t Odyssey Freewheel
• Odyssey Springfield Brakes
• Odyssey Quik Slic Kable
• KMC S1 Chain

SPECIFICATIONS

• FRAME: Sunday Blueprint, 15.5" Top Tube
• HEADSET: Traditional 1-1/8"
• BB: Loose-Ball, American, 19mm
• BARS: Sunday, 2-Piece
• FORK: Sunday Blueprint 16" Fork w/ 2-Piece Steerer Tube
• STEM: Front Load, Aluminum, 40mm
• GRIPS: Velo Junior
• SEAT: Velo Junior, Adjustable
• SEAT POST: 1" Steel
• CRANKS: 115mm, 1-Piece
• CHAINRING: Sunday S-Logo, 28T, Steel
• PEDALS: Wellgo Junior Platform, Plastic
• FRONT HUB: Sunday, 20H, Low-Flange, Loose-Ball, 3/8" Axle
• REAR HUB: 20H, Loose-Ball, 3/8" Axle w/ Odyssey 13T Freewheel
• RIMS: P-7X Aluminum, 16", 20H
• TIRES: Sunday Current, 16x2.1" Front & Rear
• BRAKES: Odyssey Springfield U-Brake
• WEIGHT: 21.73 lbs (with brakes)

GEOMETRY

FRAME:

• Top Tube Length: 15.5"
• Head Tube Angle: 73.5°
• Seat Tube Angle: 71°
• Chainstay Length: 11.25"
• Bottom Bracket Height: 9.25"
• Standover: 6.9"

HANDLEBARS:

• Rise: 6.75"
• Width: 23"
• Backsweep: 12°
• Upsweep: 1°
