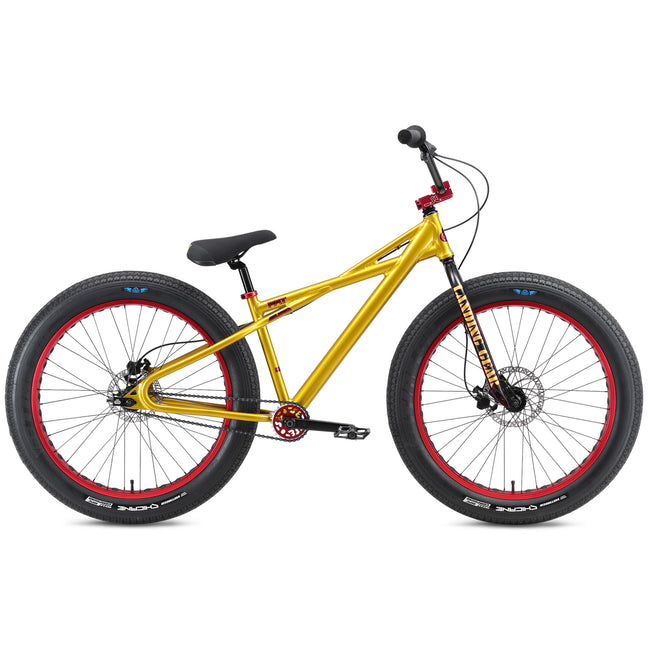

SE Bikes Fat Quad 26" BMX Freestyle Bike-Royal Gold - 1

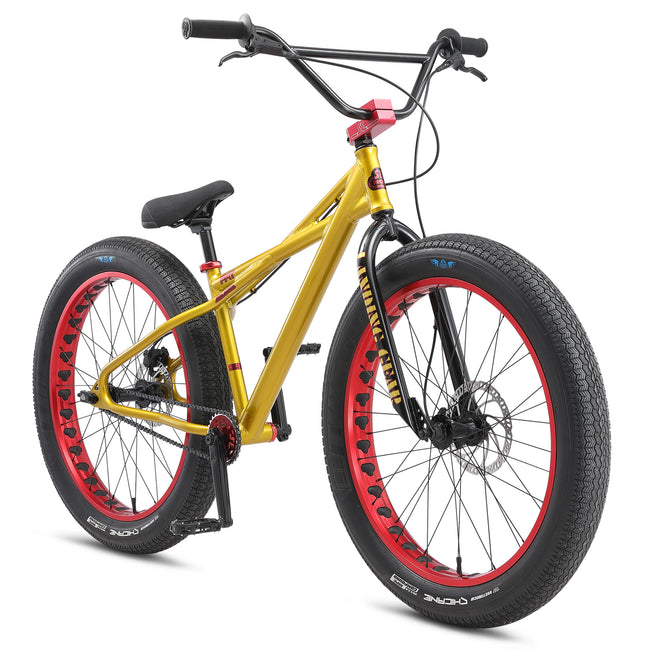

SE Bikes Fat Quad 26" BMX Freestyle Bike-Royal Gold - 2

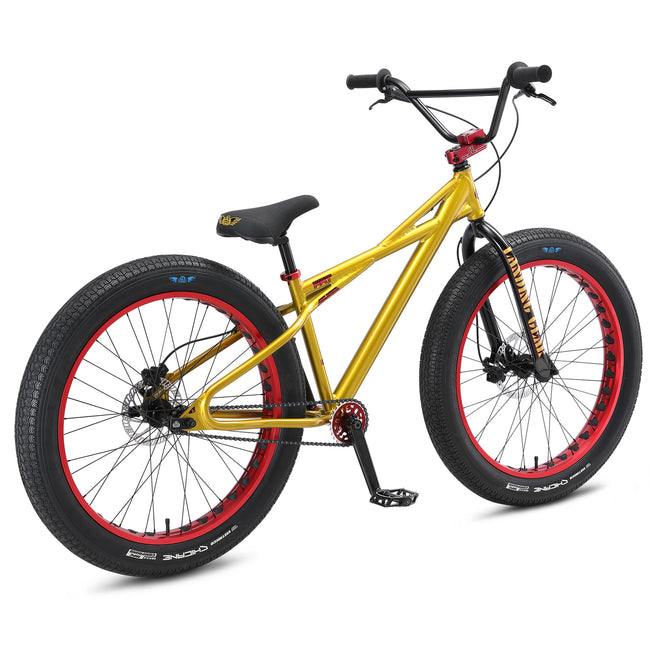

SE Bikes Fat Quad 26" BMX Freestyle Bike-Royal Gold - 3

SE Bikes Fat Quad 26" BMX Freestyle Bike-Royal Gold

$1,199.99
Secure Checkout

About This Product: SE Bikes Fat Quad 26" BMX Freestyle Bike-Royal Gold

The SE Bikes Fat Quad 26" BMX Freestyle Bike is the ultimate fat BMX bike, built around the iconic Quadangle frame design with an oversized downtube and legendary looptail rear end. It features full Cr-Mo Landing Gear forks, Tektro HD-M285 hydraulic disc brakes, and Vee Tire Co x SE Racing Chicane tires for a smooth and fast ride. With SE Big Honkin’ cruiser bars, ODI Mushroom II grips, and an SE Flyer seat with a bottle opener, this bike is packed with high-quality components for a rad experience.

FEATURES

  • 6061 aluminum Quadangle frame design, internally-machined integrated head tube, symmetrical looptail rear end, 100mm bottom bracket, 170mm-spaced rear dropouts
  • Full Cr-Mo Landing Gear forks with 135mm-spaced dropouts
  • Vee Tire Co x SE Racing Chicane, 26" x 3.50" tires run fast and smooth at 30psi
  • Special Edition ODI Mushroom II Dual-Ply Grips, Made in USA
  • SE Flyer seat with bottle opener
  • Cr-Mo SE Big Honkin’ cruiser bars
  • External bottom bracket
  • Tektro HD-M285 hydraulic disc brakes with easy to adjust open system, dual piston, 160mm rear rotor, 180mm front rotor
  • SE 3-piece V-Ridge cranks with alloy SE sprocket
  • 35.8 pounds

SPECIFICATIONS

  • COLOR: Gold
  • FRAME: 6060 Aluminum, Single Downtube Fat Quad Design, Internally-machined Integrated Head Tube, Looptail Rear End, Retro Dropouts, 170mm Spaced Dropouts, Disc Brake Tabs
  • HEADSET: FSA Orbit CE, Sealed 1-1/8" Integrated
  • BB: External Sealed Bearing 100mm Euro Bottom Bracket
  • BARS: Big Honkin' Cr-Mo Cruiser Bar, 29" x 7", 12° Backsweep, 2° Upsweep
  • FORK: Landing Gear, Full Cr-Mo, Disc Tabs, 450mm Axle to Crown, 38mm Offset, 135mm Spaced Dropouts
  • STEM: Retro Alloy Top-Load w/ Engraved SE Logo on Top & Sides, 55mm Reach
  • GRIPS: Special Edition ODI Mushroom II Dual-Ply Grips, Made in USA
  • SEAT: SE Flyer Seat w/ Custom SE Bottle Opener Brace
  • SEAT POST: Micro-Adjust Alloy, 27.2mm
  • CRANKS: SE V-Ridge 3-pc Cr-Mo Cranks,175mm, External Sealed Bearing Euro Bottom Bracket, 200mm Spindle length, 19mm Spindle Diameter
  • SPROCKET: 27T Alloy SE Racing Sprocket
  • PEDALS: X-Pedo Low-profile Platform w/ Removable Pins
  • WHEELSET: Alloy 36H Hubs, Sealed Rear, 135mm Front Hub & 170mm Rear Hub, w/ SE Bubble Fat 65mm Rims, 14T Cassette, Stainless Spokes
  • TIRES: Vee Tire Co x SE Racing Chicane, 26" x 3.5", 72TPI, Front & Rear
  • BRAKESET: Tektro HD-M285, Hydraulic Disc, Easy to Adjust Open System, Dual Piston, Automatic Caliper Positioning, 180mm Front Rotor, 160mm Rear Rotor, Tektro HD-M285 Lever, 2-Finger Alloy, Front & Rear
  • WEIGHT: 35.8 lbs / 16.23 kgs

GEOMETRY

A Top Tube, Actual 22.2"
B Seat Tube, Center To Top 14.9"
C Seat Tube Angle 72°
D Head Tube Angle 70°
E Chainstay Length 17.8"
F Wheelbase 42.6"
G Bottom Bracket Height 12.4"
H Standover 30"
Suggested Rider Size 5'3"+ (160cm+)
Stem 55mm
Handlebar Width 29"
Crank 175mm
Wheel Size 26"
Seat Post Diameter 27.2mm








Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Freestyle Bikes Sizing Guide

Freestyle Bikes Sizing Guide
Rider Height Wheel Size TT Size
Rider Height: 6'+ Wheel Size: 20", 22", 26" TT Size: 21" - 23"
Rider Height: 5'6" - 6' Wheel Size: 20", 22" 26" TT Size: 20.25" - 23"
Rider Height: 5' - 5'8" Wheel Size: 20", 22", 26" TT Size: 20" - 23"
Rider Height: 4' - 5'4" Wheel Size: 18", 20" TT Size: 18" - 20.5"
Rider Height: 3'6" - 4'6" Wheel Size: 18" TT Size: 18"
Rider Height: 3' - 3'8" Wheel Size: 14", 16" TT Size: 14.25" - 16.25"
Rider Height: 2'8" - 3'4" Wheel Size: 12", 14" TT Size: 13" - 14.25"
Rider Height: 2' - 3' Wheel Size: 12" TT Size: 12" - 13"
