Tangent Rift Aluminum BMX Race Frame-Black - 1
Tangent Rift Aluminum BMX Race Frame-Black - 2
Tangent Rift Aluminum BMX Race Frame-Black - 3

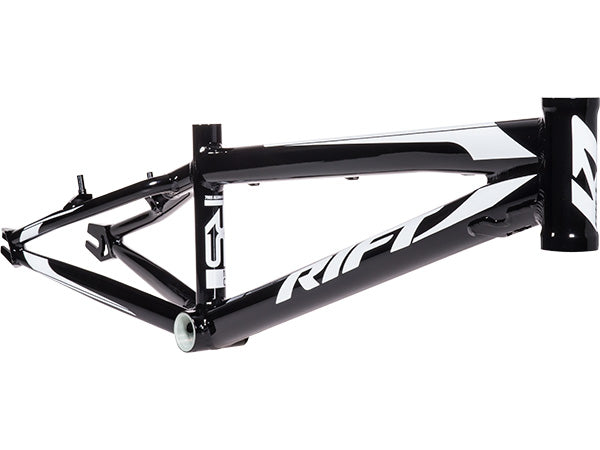

Tangent Rift Aluminum BMX Race Frame-Black

Sold Out

About This Product: Tangent Rift Aluminum BMX Race Frame-Black

The Rift BMX race frames feature 7000 heat-treated aluminum tubing with Hydroformed top-tube and butted down-tube.  The Rift race frames showcase years of knowledge and BMX experience that was used in developing them by the guys at Tangent Products.

SPECS:
*7000 Series heat-treated aluminum tubing
*Hydroformed top tube
*Butted down tube and seat tube
*Wishbone rear triangle
*Tapered chain stays
*CNC machined integrated head tube and bottom bracket
*CNC machined 3-D dropouts and gussets
*Low-pro squated stance

FRAME SPECS (Expert and Expert XL):
SEAT CLAMP: 1" (25.4mm)
SEAT POST: 22.2mm
HEADSET: Integrated 45°/45° 1-1/8" head tube
DROPOUTS: 10mm (3/8")
BOTTOM BRACKET: Euro

FRAME SPECS (Pro  and Larger):
SEAT CLAMP: 1-1/4" (31.8mm)
SEAT POST: 27.2mm
HEADSET: Integrated for all frames (1 1/8")

DROPOUTS: 10mm (3/8")
BOTTOM BRACKET: Euro

 FRAME SIZE  TOP TUBE  CHAIN STAY HEAD ANGLE SEAT ANGLE BB HEIGHT  WEIGHT
 EXPERT  19.5"  13" 74° 72° 11"  2lbs 10oz
 EXPERT XL  20"  13.5"  74° 72° 11"  2lbs 11oz
 PRO  20.5"  14.25" 74° 72° 11.25"  3lbs 2oz
 PRO XL  21" 15.175" 74° 72° 11.375"  3lbs 3oz
 PRO XXL  21.5"  15.5" 74° 72° 11.375"  3lbs 4oz


Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
