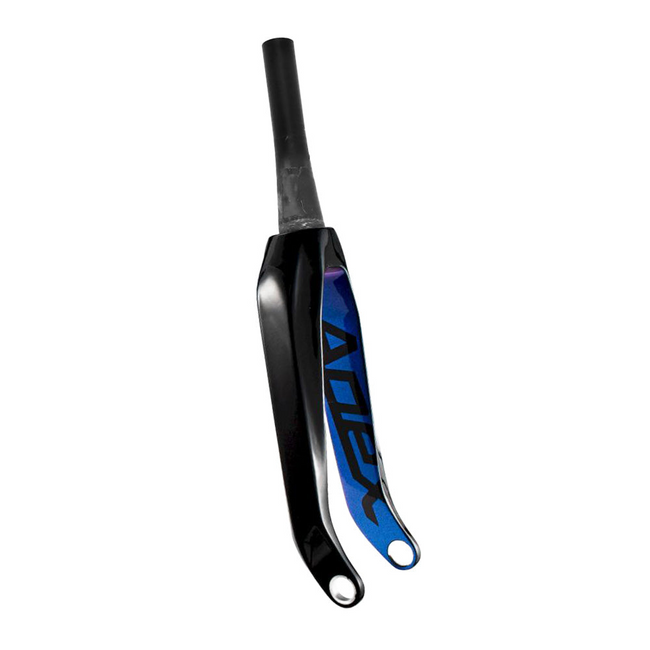

Pride Racing Matrix Tapered Carbon BMX Fork-24"x1 1/8-1.5"-Black/Chameleon

The Pride Racing Matrix Tapered Carbon BMX Fork-24"x1 1/8-1.5"-Black/Chameleon combines advanced carbon construction with a precision aluminum steerer for strength, stiffness, and confident handling. The fork legs are built from 100% HM Toray® carbon and reinforced with an internal PMI structure to improve rigidity and impact resistance during hard racing. A CNC-machined 7075-T6 aluminum steerer delivers dependable strength while helping keep overall weight low for quick, responsive front-end control.

NOTES:

• Always use a torque wrench when assembling the fork. Regular torque control is recommended.
• Know your limits and take carbon fork care seriously. After any crash, inspect it closely. If there's any sign of damage, it's your responsibility to have a professional assess it before riding again.


FEATURES

• 100% HM Toray® carbon fork legs with internal PMI structure
• 7075-T6 aluminum tapered steerer tube
• Designed to manage lateral loads, torsion, and impacts
• Built to meet EN 16054 safety and performance standards


SPECIFICATIONS

• Material: Toray Carbon / 7075-T6 Aluminum
• Wheel Size: 24"
• Axle Compatibility: 20mm (Axle not included)
• Steerer Diameter: Tapered 1 1/8" - 1.5"
• Steerer Length: 165mm
• Fork Height: 309mm
• Offset: 30mm
• Dropout Thickness: 8mm
• Compression Bolt: M22x1.5mm
• Compression Bolt Length: 20mm
• Weight: 659g (with compression bolt)
• Compression Bolt Torque (Max): 8 Nm
• Stem Bolts Torque (Max): 13 Nm
• Hub Axle Torque (Max): 8 Nm
