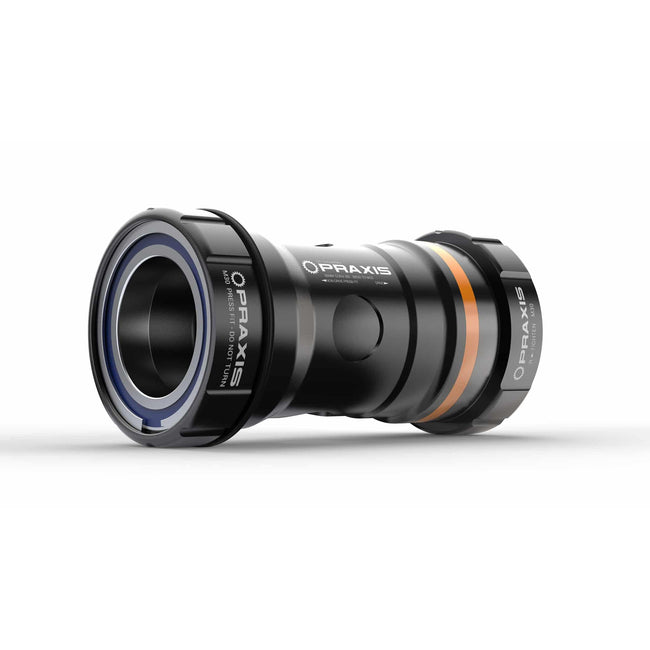

Praxis Works M30–BB30/PF30 68mm Bottom Bracket

Introducing the Praxis M30–BB30/PF30 68mm Bottom Bracket for installing a 30mm spindle crank into a 68mm BB30 or PF30 road frame. Featuring quality steel bearings, this bottom bracket is designed to be a perfect match for the BOX M30 series of cranks. Experience dependable and smooth performance throughout every ride.

SPECIFICATION

• PRODUCT M30 BB30/PF30 ROAD BB: For use with BB30/PF30 ROAD 68mm frame
• BUY THIS IF: You are installing a Praxis M30 alloy spindle road crank into 68mm width BB30 or PF30 road frame.

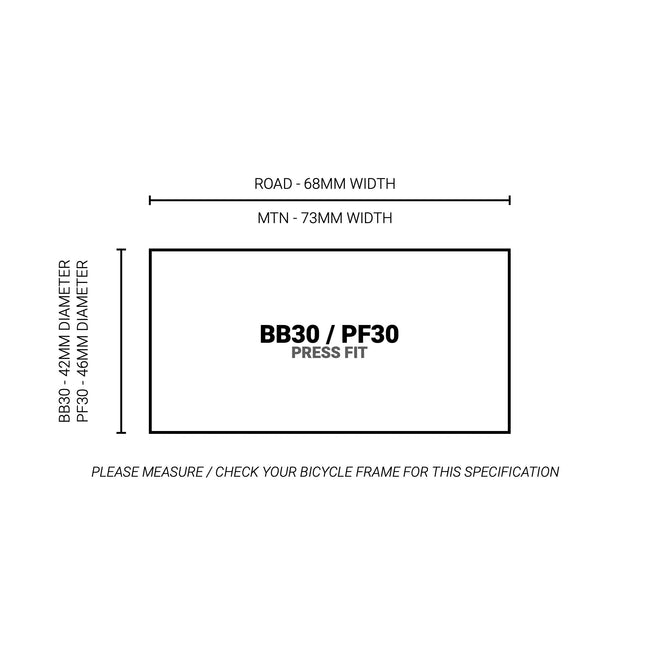

• MEASUREMENT: 68mm Width Road | ROAD ONLY
• BEARINGS: Cartridge Steel or Ceramic, 30mm DRIVE / 28mm Non-DRIVE, Ceramic version is Grade 5 / ABEC 5 rating
• TOOL: This specific M30 BB has collet design and requires a press tool/drift for installation along with a 2pk M30 Socket Tools or 2 M30 Wrench Tools. Please read the instructions carefully for installation.
• MFG: Forged & machined heat-treated alloy cups
• AVG. WEIGHT: 130g

Manufacturer Notes:

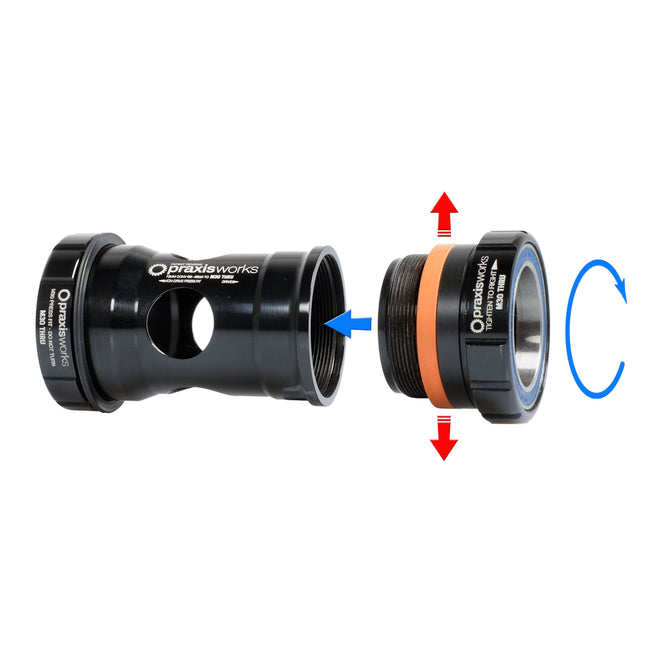

• Praxis Collet Design
• This BB cannot be used for MTB Cranks
• Frame shell cannot have any inner shell obstructions (like cable guides/screws) that prevent BB from installing.

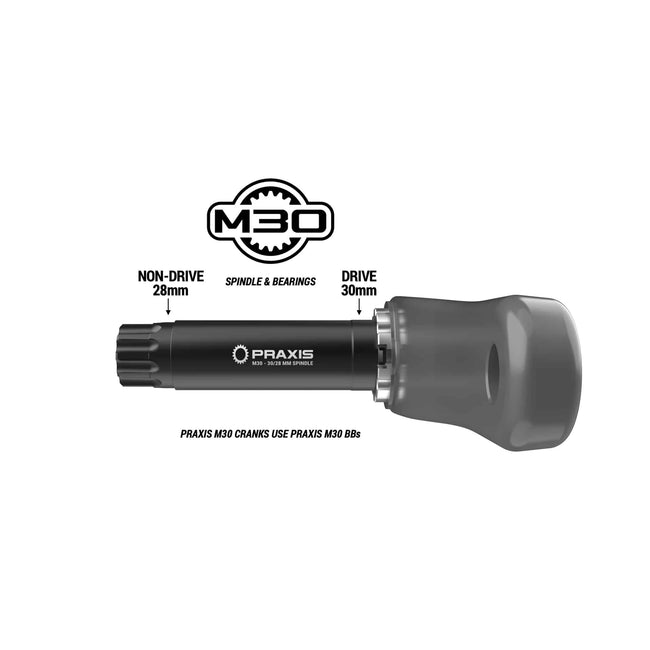

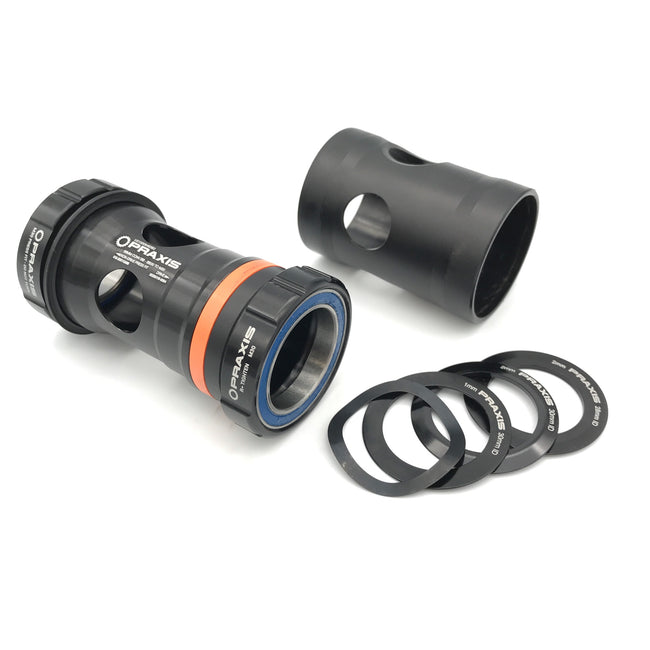

• Praxis M30 bottom brackets have a 30mm Drive and a 28mm NonDrive Bearing. These are specifically made for use with Praxis M30 spindles. A drive-side wave washer is used for preload of the bearings.
• Praxis also offer an M30 Bearing Rebuild Kit here if or when you want to refresh the bearings (sold separately).
