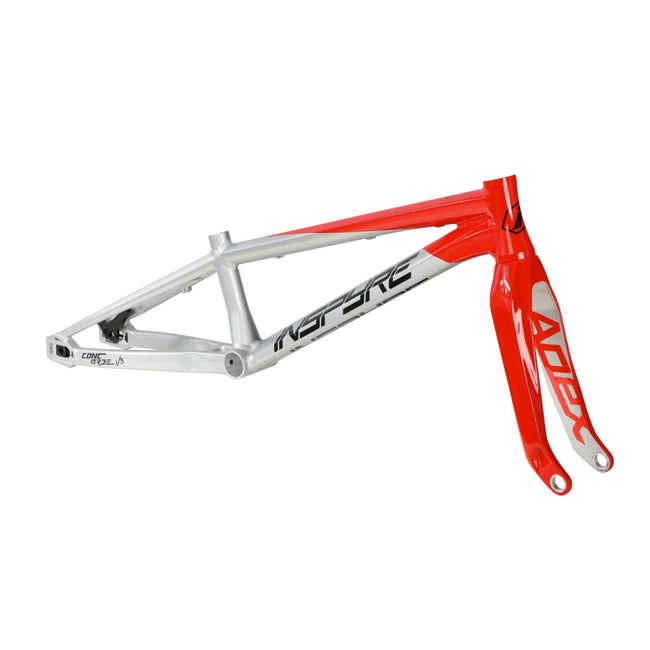

Inspyre Concord V3 Alloy BMX Race Frame-Racing Red/Grey

Inspyre
Sold Out

About This Product: Inspyre Concord V3 Alloy BMX Race Frame-Racing Red/Grey

The Inspyre Concord V3 Alloy BMX Race Frame-Racing Red/Grey is built for top performance with a lightweight, ultra-rigid aluminum design. Hydroformed tubing enhances strength, aerodynamics, and reduces weight by 15%. Oversized rear stays and a wide bottom bracket improve stiffness for maximum power transfer, while the SWELL V2 dropout system allows precise wheelbase adjustments. Flat welds and sleek paintwork complete the high-performance look. This frame delivers the speed and control racers need.

FEATURES

  • Frame 100% aluminum 6061-T6
  • Hydroformed tubes with multiple thicknesses
  • Compatible only with "Post Mount" hydraulic brakes
  • Bottom bracket BSA 68 or BB86 depending on sizes - see the table below
  • Compatible with Inspyre's ADS chain tensioners
  • Compatible with a 15mm thru-axle for the rear wheel - Sold separately

GEOMETRY








CONCORDE V3		 RIDER AREA DOWNTUBE TOP TUBE CHAINSTAYS HEAD ANGLE SEAT ANGLE BB DROP HEADTUBE LENGTH FORK HEIGHT FORK RAKE WHEELBASE
A B C D E F G H I J K
mm mm Inches mm Inches
(min / max) 		mm
(min / max) 		° ° mm ° mm mm mm
(min / max)

Junior
526
480
18,45
469
13.3 / 14.3
337 / 362
73°
70°
3,7
110
309
30
845 / 870

Expert
544
505
19,50
495
13.3 / 14.3
337 / 362
73°
71°
16,4
110
309
30
883 / 908

Expert XL
559
520
20,20
513
13.3 / 14.3
337 / 362
73°
71°
16,4
110
309
30
901 / 926

Pro
563
528
20,65
525
14.2 / 15.2
360 / 385
74°
72°
45,4
115
309
30
940 / 965

Pro XL
575
542
21,25
540
14.4 / 15.4
365 / 390
74°
72°
45,4
115
309
30
961 / 986

Pro 2XL
585
553
21,75
552
14.7 / 15.7
373 / 398
74°
72°
45,4
115
309
30
981 / 1006

Pro 3XL
596
566
22,25
565
15.3 / 16.3
389 / 414
74°
72°
45,4
115
309
30
1012 / 1037

Pro 4XL
611
584
23,00
584
15.3 / 16.3
390 / 415
74°
72°
45,4
115
309
30
1033 / 1058

Cruiser
617
572
21,85
555
15 / 16
380 / 405
73.5°
70°
5
115
359
30
971 / 996


SPECIFICATIONS


SEAT TUBE DIAMETER SEAT CLAMP DIAMETER BOTTOM BRACKET STYLE SHIS HEADTUBE STYLE SPROCKET SIZE (MAX) TIRE SIZE (MAX) DISC BRAKE STYLE AXLE WEIGHT
Junior
22.2mm
25.4mm
Euro BSA - 1.375’’ BC 24T - 68MM		 IS42 | IS42 - 45°
ø Bearing 41.8mm		 Integrated 1’’-1/8
110mm		 44T 20 x 1-3/8
Disc only

Post Mount

120MM
10mm or 15mm
NC
Expert
1345 g
Expert XL
NC
Pro 31.6mm 34.9mm
PRESS FIT BB86		 IS42 | IS52 - 45°
ø Upper bearing 41.8mm
ø Lower bearing 51.9mm		 Integrated Tapered
115mm		 50T 20 x 1,85
NC
Pro XL
NC
Pro 2XL
NC
Pro 3XL
1550 g
Pro 4XL
NC
Cruiser 44T 24 x 1,75
1713 g

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
