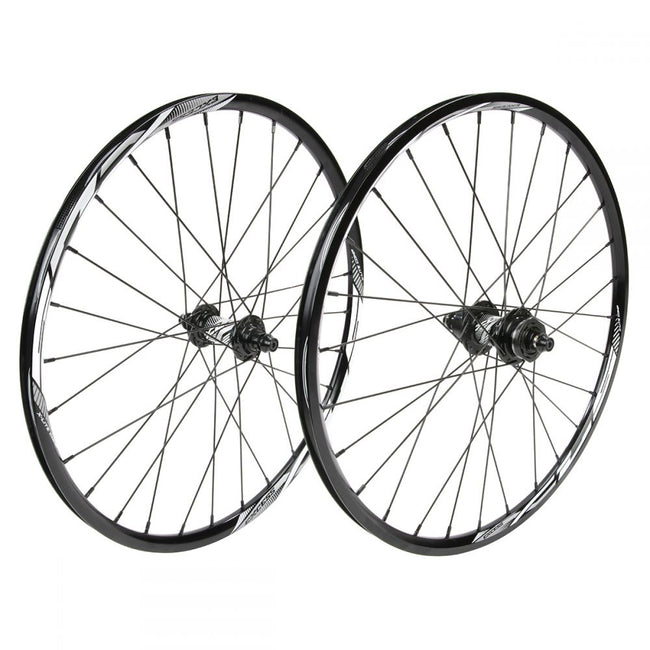

Excess XLC-1 Mini/Expert Alloy Wheelset-28H-20x1 1/8"

by Excess
Sold out
$328.95

About This Product

The Excess XLC-1 Mini/Expert Alloy Wheelset-28H-20x1 1/8"-Black/White is from an all new, track-proven line up. Featuring proprietary, double-walled, 6061-T6 alloy rims. The front is mated to an Excess XLC-1 sealed front hub with alloy axle and end caps. While the rear has a sealed cassette hub with a precision single engagement, 3 pawl system and a 24 ratchet ring. These stiffer and stronger rims make for a great upgrade for your bike with a nice return on investment realized in pure performance.

XLC-1 Alloy Rim Features:

  • Double walled 6061-T6 Alloy rim with Optimized Internal Geometry for light weight and optional strength
  • Low Profile Aero
  • Brakeless Surface Profiles Front rim
  • Machined Brake Track on Brake surface on rear rim
  • Single process hi-polished, black anodized finish
  • Angled Nipples Holes
  • Laced with 14G Stainless spokes & Brass nipples
  • Included rim tapes

XLC-1 Mini/Expert Front Hub Features:

  • 2 sealed bearings
  • Alloy axle / Alloy end caps
  • M6 bolts with alloy CNC bolts caps

XLC-1 Mini/Expert Rear Hub Features:

  • 4 sealed bearing
  • Alloy axle
  • M6 bolts with alloy CNC bolts caps
  • Cromo driver (3 pawls single engage into a 24 ratchets outer ring), with cromo 1x 1mm, 1x 0.5mm driver spacer and lock ring.
  • Chromoly driver (3 pawls single engage into a 24 ratchets outer ring), with Chromoly 1x 1mm, 1x 0.5mm driver spacer and lock ring.
  • Option to replace the supplied alloy lock ring and install the Center Lock Disc Adapter.
  • Rear Cog and Center Lock Disc adapter not included

XLC-1 Alloy Rim Specifications:

  • SIZE : 20″ X 1-1/8″-1-3/8″
  • ETRTO: 451mm
  • ERD: 438mm
  • Height: 16mm
  • Internal Rim Width: 13.6mm (front) 14.6mm (rear)
  • External Rim Width: 19.5mm
  • Valve : F/V Presta

Spokes Length:

  • Front: 215mm
  • Rear: 212/214mm

Wheel Weights:

  • Front: 596g
  • Rear: 850g

Rims Drilling:

  • 28 holes

Cassette Body Specifications:

  • Chromoly driver : 3 pawls single engage into a 24 ratchets outer ring

Center Lock Disc Adapter Specifications:

  • Center lock disc adapter and disc sold separately
