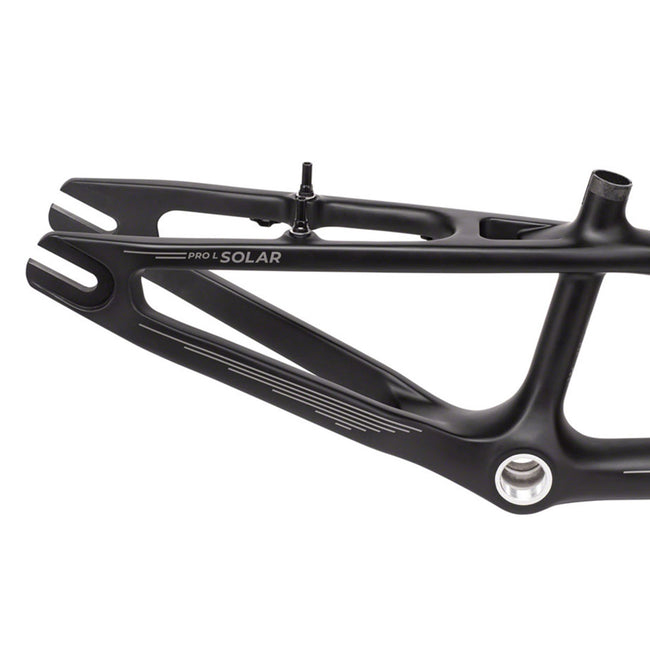

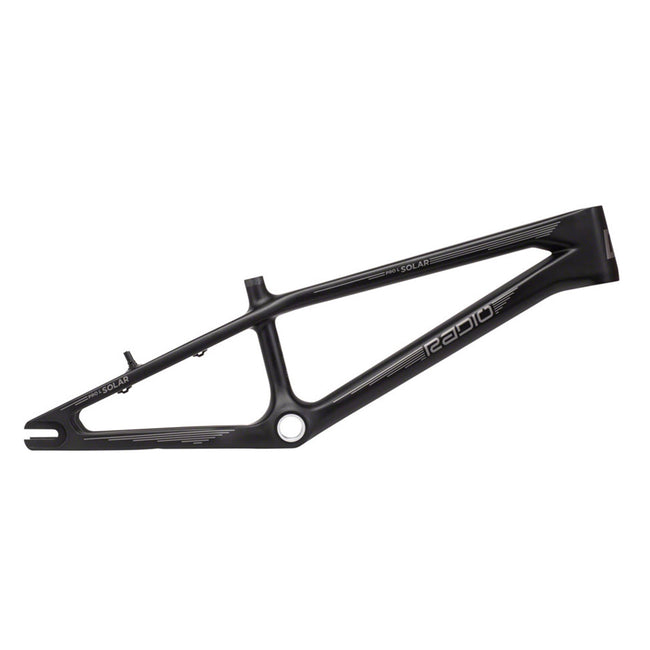

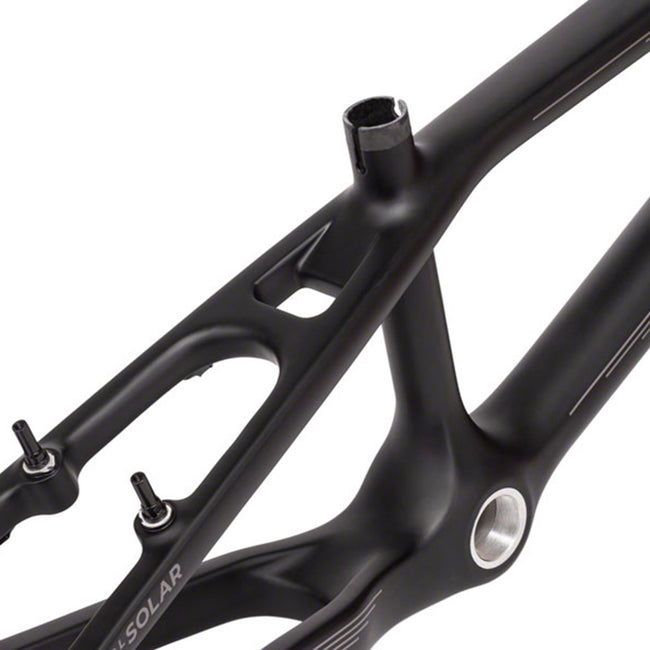

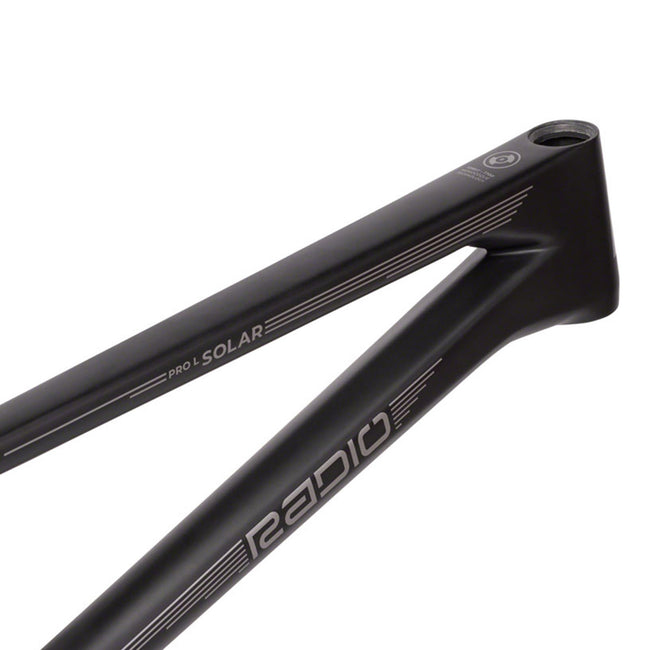

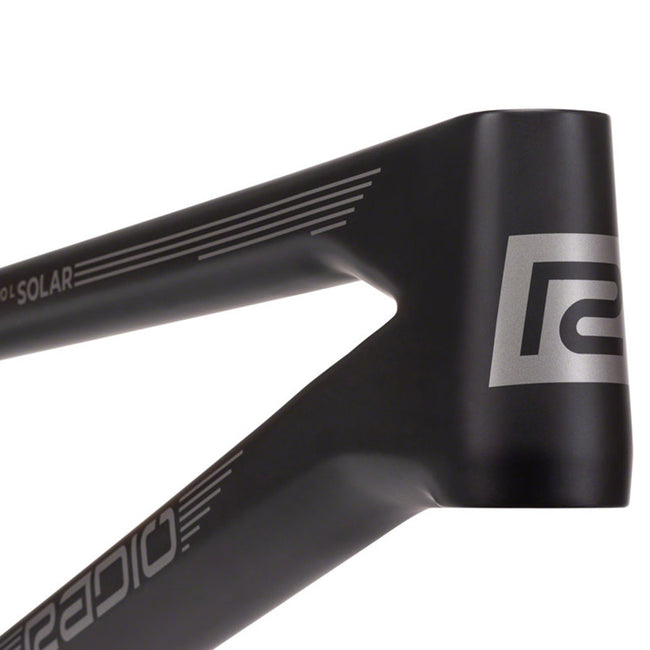

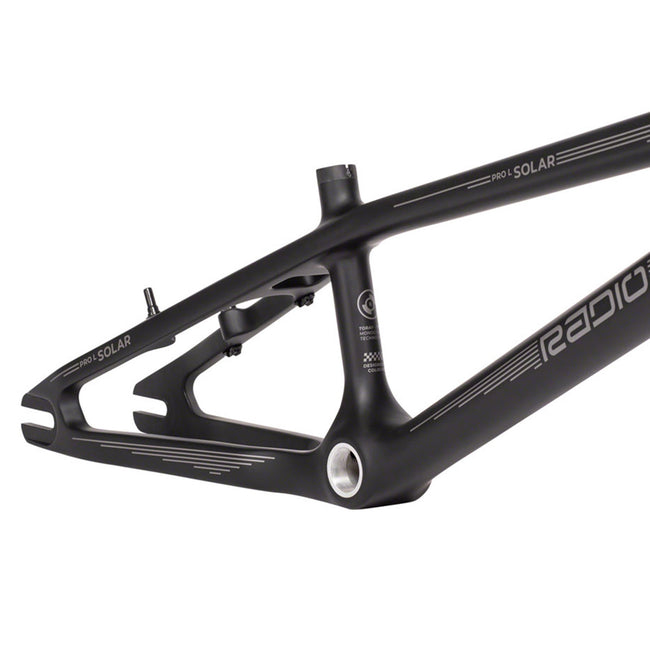

Radio Solar Carbon BMX Race Frame-Matte Black

The Radio Solar BMX Race Frame-Matte Black at J&R Bicycles comes from years of testing to deliver a superior carbon frame that is super stiff and lightweight. Radio built this frame from high-quality Torayca Carbon using a 100% monocoque one-piece design. This allows for added strength by eliminating weak fatigue points. This frame can handle all sorts of high-impact riding styles and has an internal cable routing system which means your set-up stays nice and sleek.

FEATURES

• Full monocoque technology
• Internal cable routing
• Laboratory tested for superior strength and stiffness

SPECIFICATIONS

• MATERIAL: High Performance TORAYCA Carbon Fiber
• TOP TUBE LENGTH (Actual): 20,75" (527mm)
• TOP TUBE LENGTH (Effective): TBA
• CHAIN STAY LENGTH (Min): 14,25" (362mm)
• DROPOUT SIZE: 15mm
• HEAD TUBE ANGLE: 74,5"
• SEAT TUBE ANGLE: 71"
• HEAD TUBE SIZE: (Full Int): Tapered 1-1/8" - 1,5" (120mm)
• SEAT POST SIZE: 27,2mm
• SEAT TUBE LENGTH: 238mm
• BOTTOM BRACKET TYPE: Euro, threaded, BSA 68mm
• BOTTOM BRACKET HEIGHT: 11,6"
• WHEEL SIZE: 20 x 1,75"
