Chase RSP 1.0 BMX Race Frame-Ltd Ed Red - 1

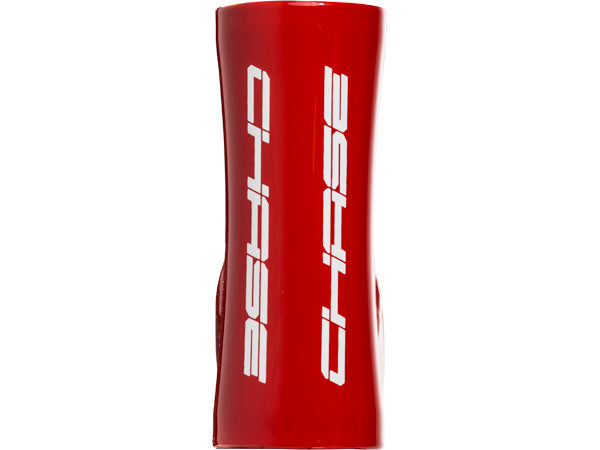

Chase RSP 1.0 BMX Race Frame-Ltd Ed Red - 2

Chase RSP 1.0 BMX Race Frame-Ltd Ed Red

Chase Bicycles
Sold Out

About This Product: Chase RSP 1.0 BMX Race Frame-Ltd Ed Red


Chase leverages the best of modern technology with 7005 T4/T6 Heat treated Alloy, Hydro-formed, tapered, oval and swedged tubing, double-butted and triple-butted tubes, CNC 3D 7mm dropouts, CNC integrated head tubes, and beautiful & detailed graphics. Chase frames feature a double-butted top tube & triple butted down tube. The chain & seat stays both utilize a special process: muscle forming to give a unique look, give added strength & stiffness to round out, creating one of the lightest & stiffest BMX frames available. Chases add these incredible features while remaining true to the traditional look of BMX but with cutting edge racing performance. The Hydroformed or teardrop shaped tubing that is on the RSP Frames are custom designed, radically shaped, & drawn aluminum alloy for weight savings and stiffness that help give optimal strength and rigidity to the frame. Hydroformed tubes have two main advantages. First, the narrow axis is a flatter surface, which means more surface area to carry the load, so it is stiffer & stronger across the minor axis. Secondly, the deeper axis is stiffer since the stiffness varies to the cube of the diameter, stronger to the square. When using an oval-shaped tube on a typical BMX frame it helps reduce flex but only in one direction, but on the Chase frame the tubes are oval in both directions in the main flex areas and these tubes help reduce flex in both main directions.

 FRAME SPECS (Mini XL - Expert):
SEAT CLAMP: 1"
SEAT POST: 22.2mm
HEADSET: Integrated (requires a "step-down type" integrated headset for use with 1" forks.  All frames (even minis) come with 1-18" headtube.  ACS, ELEVN, and SINZ make a step-down headset with 1-18" bearings and 1" sleeve to fit 1" forks)


FRAME SPECS (Expert XL  and Larger):
SEAT CLAMP: 1 1/4"
SEAT POST: 27.2mm
HEADSET: Integrated for all frames (1 1/8")
 FRAME SIZE  TOP TUBE  CHAIN STAY HEAD ANGLE SEAT ANGLE BB HEIGHT  WEIGHT
 MINI XL  18"  12.75"  73°  70°  10.6"   2lbs 10oz
 JUNIOR XL  19"  13"  73°  70°  10.6"  2lbs 11oz
 EXPERT  19.5"  13"  73°  70°  11"  2lbs 13oz
 EXPERT XL  20"  13.5"  73°  70°  11"  3lbs 3oz
 PRO  20.5"  14.25"  74°  72.5°  11.5"  3lbs 4oz
 PRO PLUS  20.75"  14.25"  74°  72.5°  11.5"  3lbs 5oz
 PRO XL  21"  14.3"  74°  72.5°  11.5"  3lbs 5,5oz
 PRO XL PLUS  21.25"  14.5"  74°  72.5°  11.5"  3lbs 5.7oz
 PRO XXL  21.5"  14.5"  74°  72.5°  11.5"  3lbs 5.9oz
 PRO XXL PLUS  21.75"  14.75"  74°  72.5°  11.5"  3lbs 6oz
 PRO CRUISER  21.25"  15.25"  73°  69.5°  12"  3lbs 6.8oz
 PRO XL CRUISER  21.75"  15.25"  73°  69.5°  12"  3lbs 7oz

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
