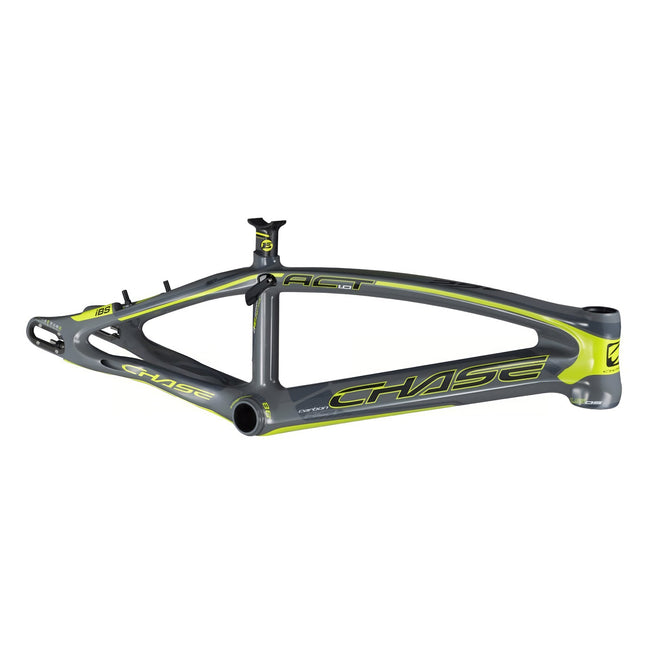

Chase ACT 1.0 Carbon BMX Race Frame-Gloss Grey/Neon Yellow

Chase Bicycles
Sold Out

About This Product: Chase ACT 1.0 Carbon BMX Race Frame-Gloss Grey/Neon Yellow

The Chase ACT 1.0 Carbon BMX Race Frame-Gloss Grey/Neon Yellow is one of the most advanced BMX race frames ever made. Each Act 1.0 frame will come with ELEVN Monocoque Carbon Aero Seat Post (Length : 110mm, Weight : 60 g / 2.12 oz), has an Integrated Quick Release Seat Clamp, and 2 sets of Chain Tensioner 20mm and 10mm, letting you choose the type of rear hub to use with your new frame.

  • Carbon Monocoque Frame featuring Uni-Directional carbon technology
  • Integrated Tapered headset 1.5” OS bottom and 1-1/8” top with reinforced alloy cup
  • Integrated Brakes system
  • Internal Brake Cable routing and recessed brake bosses
  • Optimized AeroDynamic
  • Chase Aero seat post technologies with an Integrated Quick Release seat clamp
  • with reinforced alloy cup
  • Extra length reinforced stainless steel 20mm drop out with built-in alloy tensioner, also included is a 10mm (3/8) axle adapter.
Chase ACT 1.0 Carbon BMX Race Frame-Gloss Grey/Neon Yellow Geometry
Frame Size TT CS minLR AF SA HT SPL BBH Rider Area Weight
Frame Size: Pro TT: 20.50″ 520.70 mm CS min: 14.25″ 362.0 mm minLR: 2.36″ 60 mm AF: 74° SA: 72.5° HT: 4.7″ 120 mm SPL: 9.3″ 236.2 mm BBH: 11.5″ 292.1 mm Rider Area: 20.66″ 524.98mm Weight: 1039 grams 2 lbs 4.65 oz
Frame Size: Pro + TT: 20.75″ 527.05 mm CS min: 14.25″ 362.0 mm minLR: 2.36″ 60 mm AF: 74° SA: 72.5° HT: 4.7″ 120 mm SPL: 9.3″ 236.2 mm BBH: 11.5″ 292.1 mm Rider Area: 20.99″ 533.19mm Weight: 1062 grams 2 lbs 5.46 oz
Frame Size: Pro XL TT: 21″ 533.4 mm CS min: 14.25″ 362.0 mm minLR: 2.36″ 60 mm AF: 74° SA: 72.5° HT: 4.7″ 120 mm SPL: 9.3″ 236.2 mm BBH: 11.5″ 292.1 mm Rider Area: 21.24″ 539.61mm Weight: 1085 grams 2 lbs 6.27 oz
Frame Size: Pro XL+ TT: 21.25″ 539.75 mm CS min: 14.5″ 368.3 mm minLR: 2.36″ 60 mm AF: 74° SA: 72.5° HT: 4.7″ 120 mm SPL: 9.3″ 236.2 mm BBH: 11.5″ 292.1 mm Rider Area: 21.48″ 545.65mm Weight: 1107 grams 2 lbs 7.04 oz
Frame Size: Pro XXL TT: 21.50″ 546.1 mm CS min: 14.5″ 368.3 mm minLR: 2.36″ 60 mm AF: 74° SA: 72.5° HT: 4.7″ 120 mm SPL: 9.3″ 236.2 mm BBH: 11.5″ 292.1 mm Rider Area: 21.74″ 552.37 mm Weight: 1130 grams 2 lbs 7.86 oz

Frames Weights listed are without the seat post, seat clamp, and chain tensioners.

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
