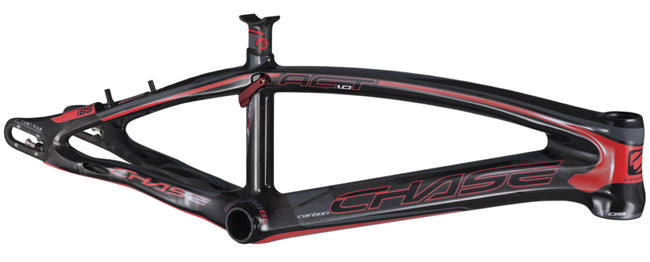

About This Product: Chase ACT 1.0 Carbon BMX Race Frame-Gloss Black/Red


The Chase Act 1.0 Carbon BMX Race Frame-Gloss Black/Red is one of the most advanced BMX race frames ever made. Each Act 1.0 frame will come with ELEVN Monocoque Carbon Aero Seat Post (Length : 110mm, Weight : 60 g /  2.12 oz), has an Integrated Quick Release Seat Clamp, and 2 sets of Chain Tensioner 20mm and 10mm, letting you choose the type of rear hub to use with your new frame.

  • Carbon Monocoque Frame featuring Uni-Directional carbon technology

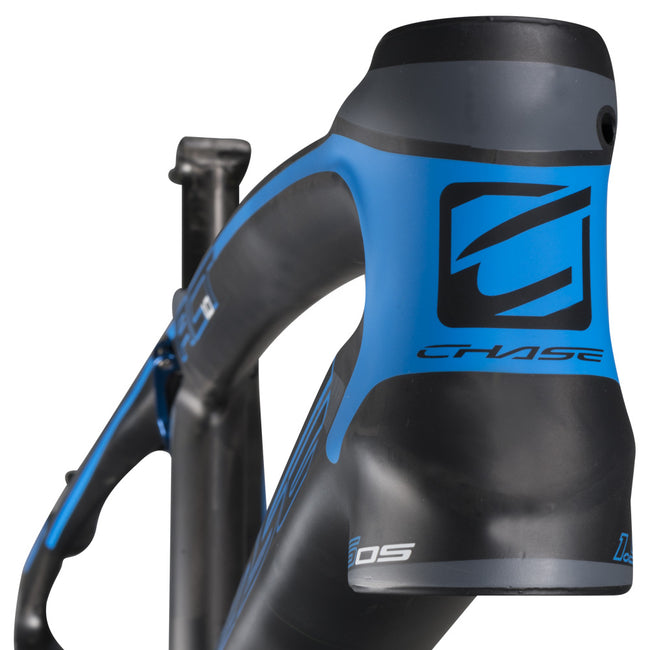

  • Integrated Tapered headset 1.5” OS bottom and 1-1/8” top with reinforced alloy cup
  • Integrated Brakes system

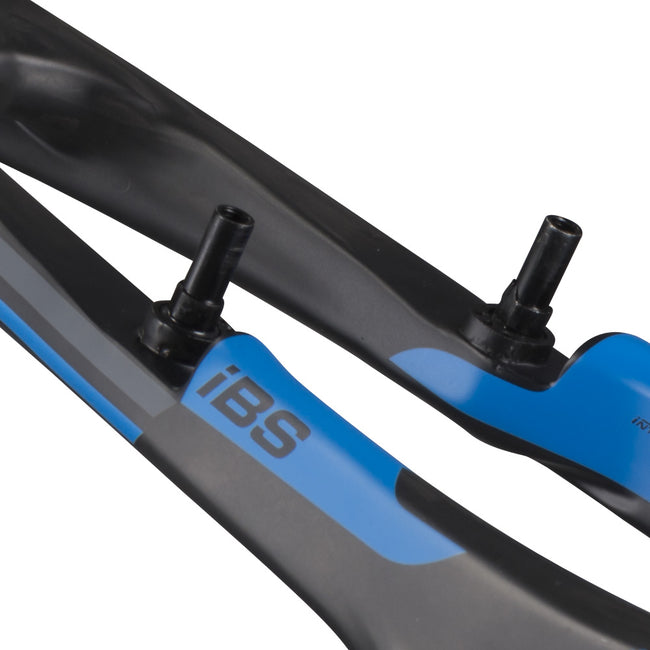

  • Internal Brake Cable routing and recessed brake bosses
  • Optimized AeroDynamic

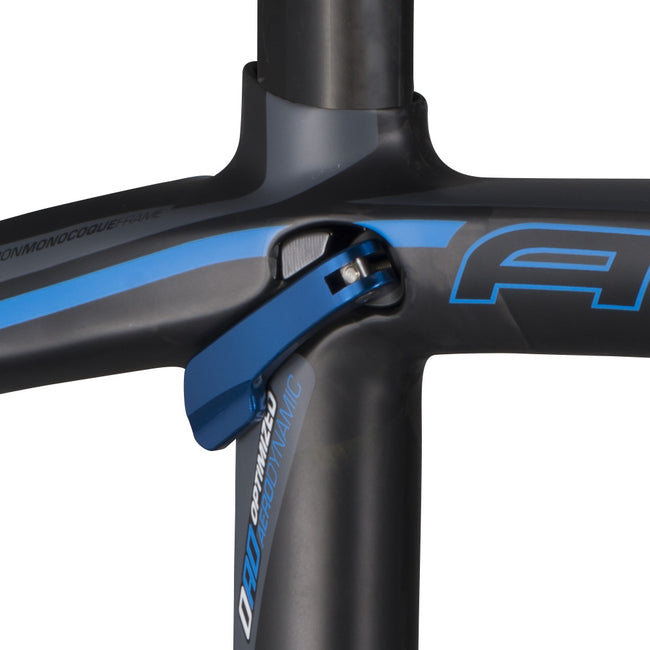

  • Chase Aero seat post technologies with an Integrated Quick Release seat clamp

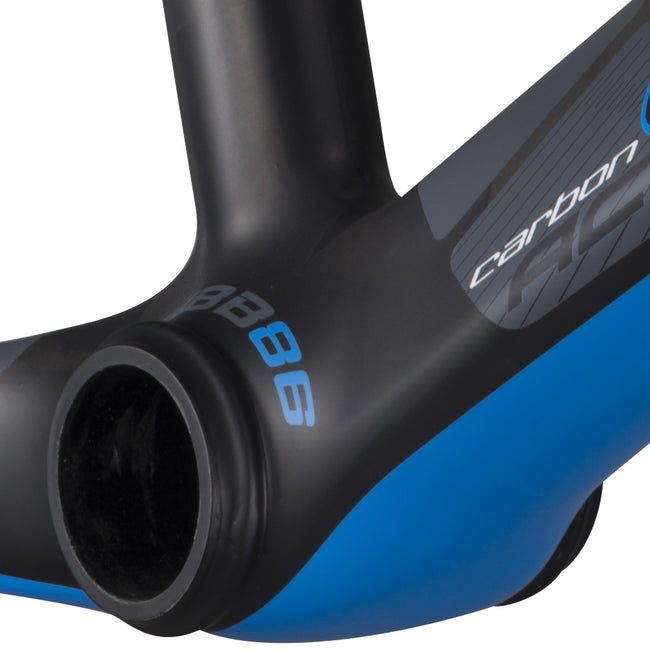

  • Press Fit Integrated BB86 Bottom Bracket
  • with reinforced alloy cup

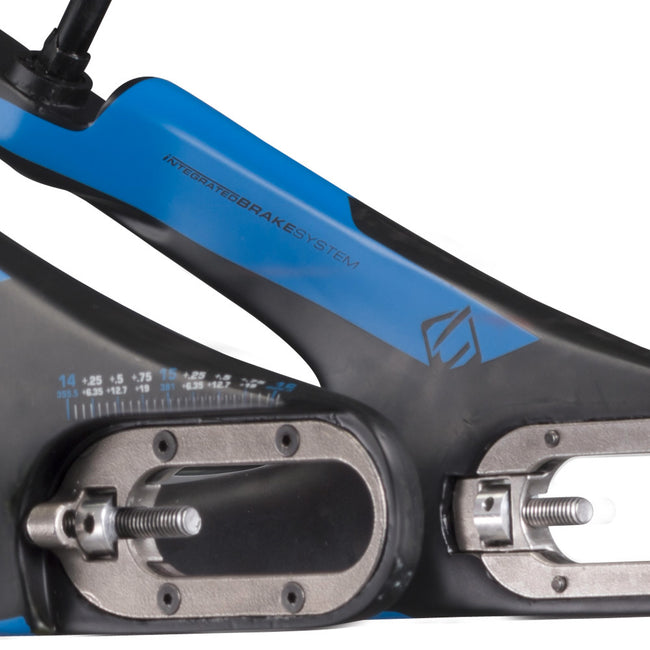

  • Extra length reinforced stainless steel 20mm drop out with built-in alloy tensioner, also included is a 10mm (3/8) axle adapter.

Frame Size TT CS min LR AF SA HT SPL BBH Rider Area Weight
Pro 20.50″
520.70 mm		 14.25″
362.0 mm		 2.36″
60 mm		 74° 72.5° 4.7″
120 mm		 9.3″
236.2 mm		 11.5″
292.1 mm		 20.66″
524.98mm		 1039 grams
2 lbs 4.65 oz
Pro + 20.75″
527.05 mm		 14.25″
362.0 mm		 2.36″
60 mm		 74° 72.5° 4.7″
120 mm		 9.3″
236.2 mm		 11.5″
292.1 mm		 20.99″
533.19mm		 1062 grams
2 lbs 5.46 oz
Pro XL 21″
533.4 mm		 14.25″
362.0 mm		 2.36″
60 mm		 74° 72.5° 4.7″
120 mm		 9.3″
236.2 mm		 11.5″
292.1 mm		 21.24″
539.61 mm		 1085 grams
2 lbs 6.27 oz
Pro XL+ 21.25″
539.75 mm		 14.5″
368.3 mm		 2.36″
60 mm		 74° 72.5° 4.7″
120 mm		 9.3″
236.2 mm		 11.5″
292.1 mm		 21.48″
545.65 mm		 1107 grams
2 lbs 7.04 oz
Pro XXL 21.50″
546.1 mm		 14.5″
368.3 mm		 2.36″
60 mm		 74° 72.5° 4.7″
120 mm		 9.3″
236.2 mm		 11.5″
292.1 mm		 21.74″
552.37 mm		 1130 grams
2 lbs 7.86 oz

Frames Weights listed are without the seat post, seat clamp, and chain tensioners.

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
