The Chase Act 1.0 Carbon BMX Race Frame-Gloss Black/Red is one of the most advanced BMX race frames ever made. Each Act 1.0 frame will come with ELEVN Monocoque Carbon Aero Seat Post (Length : 110mm, Weight : 60 g / 2.12 oz), has an Integrated Quick Release Seat Clamp, and 2 sets of Chain Tensioner 20mm and 10mm, letting you choose the type of rear hub to use with your new frame.
- Carbon Monocoque Frame featuring Uni-Directional carbon technology

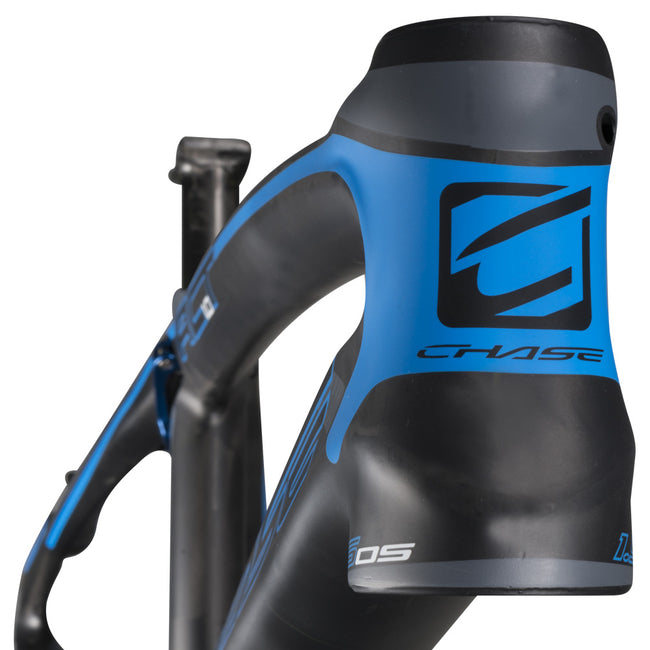

- Integrated Tapered headset 1.5” OS bottom and 1-1/8” top with reinforced alloy cup
- Integrated Brakes system

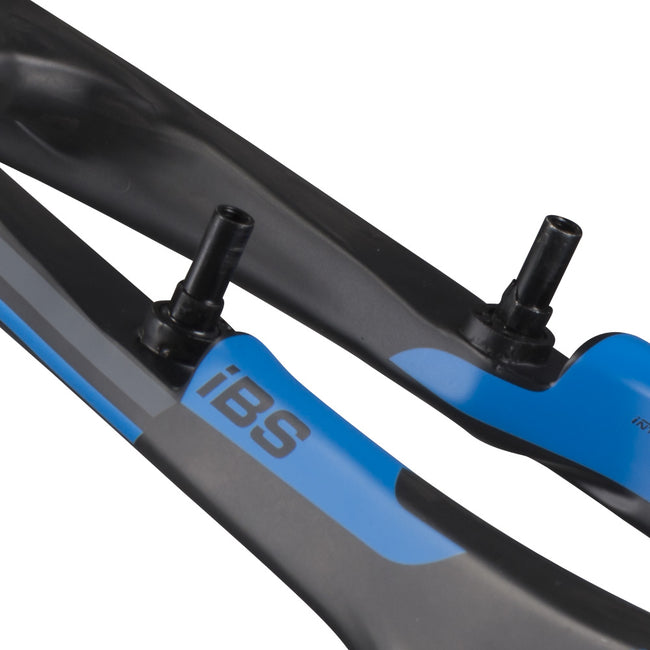

- Internal Brake Cable routing and recessed brake bosses
- Optimized AeroDynamic

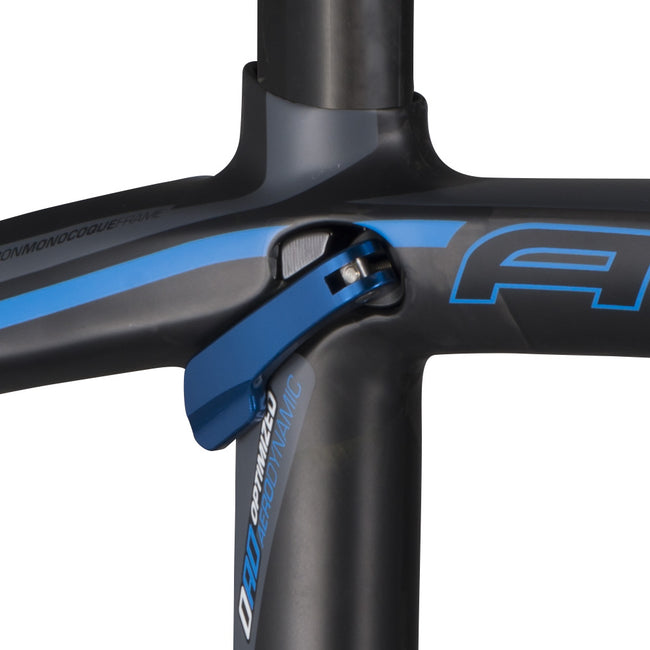

- Chase Aero seat post technologies with an Integrated Quick Release seat clamp

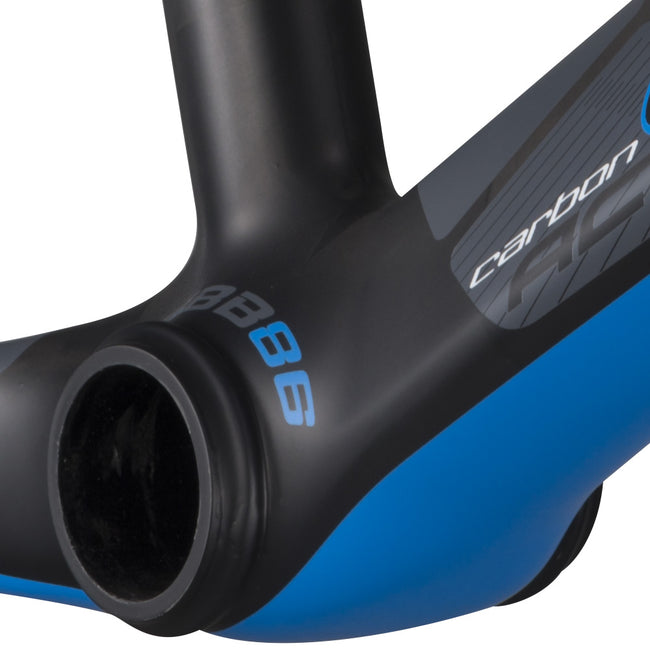

- Press Fit Integrated BB86 Bottom Bracket
- with reinforced alloy cup

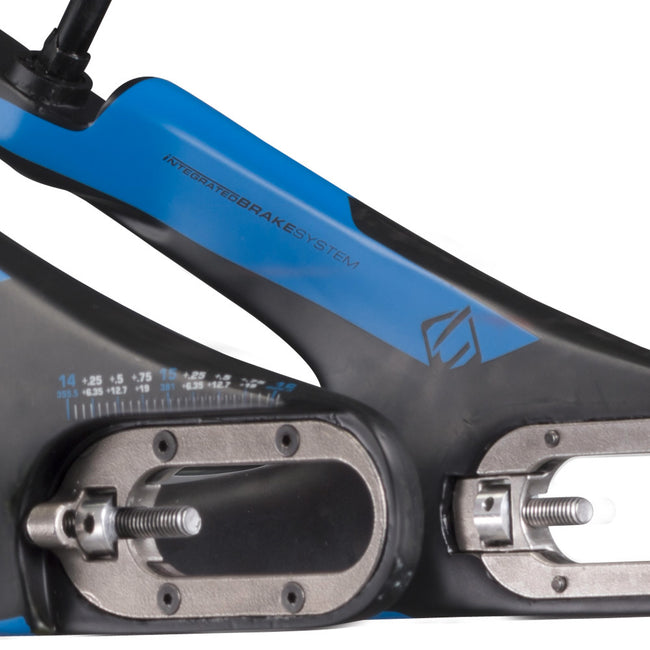

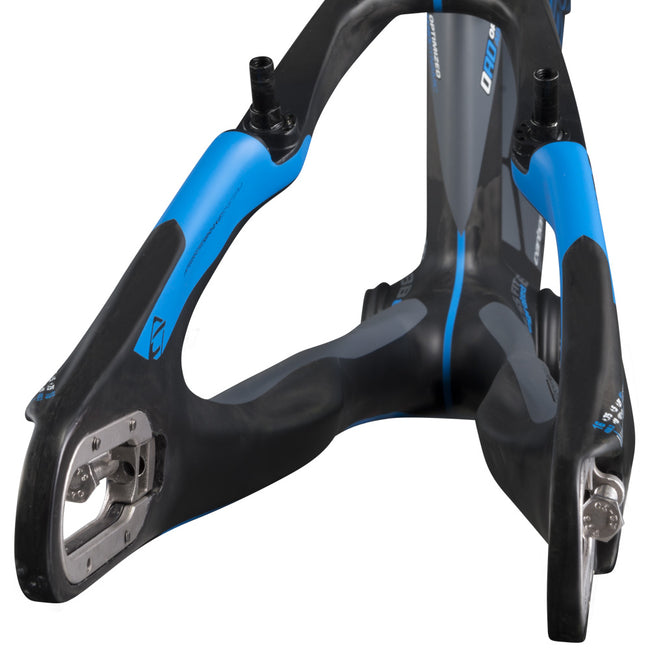

- Extra length reinforced stainless steel 20mm drop out with built-in alloy tensioner, also included is a 10mm (3/8) axle adapter.
| Frame Size |
TT |
CS min |
LR |
AF |
SA |
HT |
SPL |
BBH |
Rider Area |
Weight |
| Pro |
20.50″
520.70 mm |
14.25″
362.0 mm |
2.36″
60 mm |
74° |
72.5° |
4.7″
120 mm |
9.3″
236.2 mm |
11.5″
292.1 mm |
20.66″
524.98mm |
1039 grams
2 lbs 4.65 oz |
| Pro + |
20.75″
527.05 mm |
14.25″
362.0 mm |
2.36″
60 mm |
74° |
72.5° |
4.7″
120 mm |
9.3″
236.2 mm |
11.5″
292.1 mm |
20.99″
533.19mm |
1062 grams
2 lbs 5.46 oz |
| Pro XL |
21″
533.4 mm |
14.25″
362.0 mm |
2.36″
60 mm |
74° |
72.5° |
4.7″
120 mm |
9.3″
236.2 mm |
11.5″
292.1 mm |
21.24″
539.61 mm |
1085 grams
2 lbs 6.27 oz |
| Pro XL+ |
21.25″
539.75 mm |
14.5″
368.3 mm |
2.36″
60 mm |
74° |
72.5° |
4.7″
120 mm |
9.3″
236.2 mm |
11.5″
292.1 mm |
21.48″
545.65 mm |
1107 grams
2 lbs 7.04 oz |
| Pro XXL |
21.50″
546.1 mm |
14.5″
368.3 mm |
2.36″
60 mm |
74° |
72.5° |
4.7″
120 mm |
9.3″
236.2 mm |
11.5″
292.1 mm |
21.74″
552.37 mm |
1130 grams
2 lbs 7.86 oz |
|
Frames Weights listed are without the seat post, seat clamp, and chain tensioners.
