Chase Edge Pro Cruiser 24" BMX Race Bike-Black/Red

Name: Chase Edge Pro Cruiser 24" BMX Race Bike-Black/Red
Brand: Chase Bicycles
Price: 579.95 USD
Availability: Discontinued

Chase Bicycles

Sold Out

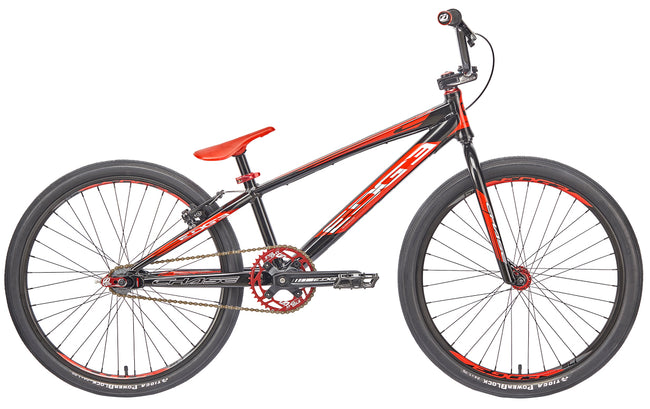

About This Product: Chase Edge Pro Cruiser 24" BMX Race Bike-Black/Red

PRODUCT DETAILS

The Chase 2018 Edge is the bike to help you take the win on the track and have you looking factory on the way to victory. It starts with a Premium Speedlite Alloy Hydroformed tubed frame, designed with race winning geometry, making it one of the most advanced frames for a complete bike at this price in BMX. Anodized best Race Red parts on a complete BMX race bike today, including a Chase Sealed Bearing rear cassette hub with 96 points of engagement, Tioga tires, Tektro brakes, Insight chainring, grips and Chain Tensioners, KMC Chain, Pivotal seat and seat post, help round out the Edge bike to make it one of the most desired complete bikes in BMX. All together, giving you the perfect size bike for all your BMX race needs and for the Chase BMX fans.

Recommended Rider Height: 5'10"-6"+

Top Tube	21.5"
Standover
Head Angle	74°
Seat Angle	71°
BB Height	12"
Chainstay	14.5"

Frame	Chase Edge Pro Cruiser 21.5″ Top Tube 6061 T6 Alloy Hydroformed, Integrated Head Tube, 1-1/8″, Water Decals
Fork	Chase Edge Full Cr-mo, 1-1/8″ Steer Tube With Tapered Blades
Color	Black/Red
Headset	Integrated Sealed Bearing
Stem	Chase Edge 50mm 6061 T6 Alloy Laser Etched Logo
Handlebar	Chase Edge Bar 5.75″ Rise, 11° Back Sweep & 2.5° Up Sweep
Grips	Insight C.O.G.S 145mm Alloy Clamps Laser Etched Logo, PVC End Plug
Seat	Pro Pivotal
Seat Post	Pivotal 27.2x250mm Polished Alloy
Seat Post Clamp	Chase Edge QR Alloy 31.8mm
Rims	Chase Edge 175 Double Wall 36H 24″x1.75″
Front Hub	Pro Hub, 36H, Double Contact Seals Bearing with Dust Caps, 3/8″ Axle/Nuts
Rear Hub	36H, Sealed Cartridge Bearings with Dust Caps, 3/8″ Axle/Nuts, Steel Cassette Body, 4 Pawls (2×2), 24T, 96 Points Of Engagement with 18T cog
Spokes	14 Gauge
Tires	Tioga PowerBlock 24″x1.85″ (1.60" Rear
Crankset	Chase Edge 3 Piece Crank 180mm Alloy Arm With Laser Etched Logo, Cr-mo Chain Ring Bolts / Nuts with Insight 41 Tooth 4 Bolts 104mm 1/2″x3/32″ 5mm Alloy Ring
Bottom Bracket	118mm Sealed Cartridge Isis BB
Pedals	Platform Pedal 9/16″
Brake	Tektro 836AL
Brake Lever	Tektro ML330
Chain	KMC Z33 1/2″x3/32″
Gearing	41:18
Extras	Insight Twin Hole Laser Etched Logo

Weight: 22.8

Additional Information

Barcode	144172
Special Shipping Group	No

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE	HEIGHT	TYPICAL AGE
FRAME/BIKE SIZE: MICRO	HEIGHT: 3' - 3'7"	TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI	HEIGHT: 3'4" - 4'	TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR	HEIGHT: 3'10" - 4'5"	TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT	HEIGHT: 4'2" - 4'9"	TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL	HEIGHT: 4'6" - 5'2"	TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO	HEIGHT: 4'9" - 5'7"	TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL	HEIGHT: 5'6" - 6'1"	TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL	HEIGHT: 5'9" - 6'5"	TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL	HEIGHT: 6'3" - 6'9"	TYPICAL AGE:
