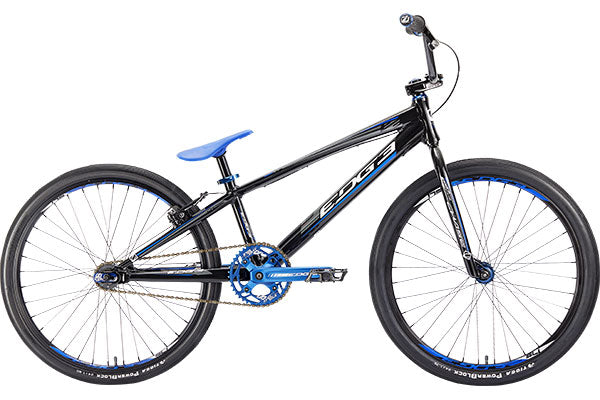

Chase Edge Pro Cruiser 24" BMX Race Bike-Black

Name: Chase Edge Pro Cruiser 24" BMX Race Bike-Black
Brand: Chase Bicycles
Price: 455.96 USD
Availability: Discontinued

Chase Bicycles

Save 20%

Sold Out

About This Product: Chase Edge Pro Cruiser 24" BMX Race Bike-Black

PRODUCT DETAILS

The 2017 Edge is better than ever! Back in Black, with a touch of the Chase team blue, the updated Edge will have you turing heads around the track and on the podium come race time!
The Edge hydroformed frame is the most advances frames for a complete bike at this price in BMX! Upgrades include a new 90 point of engagement sealed bearing Cassette hub, insight C.O.G.S. grips, and hi end featured parts such as Tioga PowerBlock and PowerBand tires, Tektro brakes, Insight Chain Tensioners, KMC Chain and Blue Pivotal seat, and Insight sprocket help round out the Edge bike, to make it the best value for an upper-level BMX complete race bike!

Recommended Rider Height: 5’7″ – 6’1″ / 1M70 – 1M85

Top Tube	21.5"
Head Angle	74°
Seat Angle	71°
BB Height	12"
Chainstay	14.5"

Frame	Chase Edge Pro Cruiser 21.5″ Top Tube 6061 T6 Alloy Hydroformed, Integrated Head Tube, 1-1/8″, Water Decals
Fork	Chase Edge Full Cr-mo, 1-1/8″ Steer Tube With Tapered Blades
Colors	Black
Headset	Integrated Sealed Bearing
Stem	Chase Edge 50mm 6061 T6 Alloy Laser Etched Logo
Handlebar	Chase Edge Bar 5.75″ Rise, 11° Back Sweep & 2.5° Up Sweep
Grips	Insight C.O.G.S 145mm Alloy Clamps Laser Etched Logo, PVC End Plug
Seat	Pro Pivotal
Seat Post	Pivotal 27.2x250mm Polished Alloy
Seat Post Clamp	Chase Edge QR Alloy 31.8mm
Rims	Chase Edge 175 Double Wall 36H 24″x1.75″ Schrader Valve
Front Hub	Pro Hub, 36H, Double Contact Seals Bearing with Dust Caps, 3/8″ Axle/Nuts
Rear Hub	36H, Sealed Cartridge Bearings with Dust Caps, 3/8″ Axle/Nuts, Steel Cassette Body, 4 Pawls, 90 Points Of Engagement
Spokes	14 Gauge
Tires	(F) Tioga PowerBand 24″x1.85″, (R) Tioga PowerBlock 24″x1.60″
Crankset	Chase Edge 3 Piece Crank 180mm Alloy Arm With Laser Etched Logo, Cr-mo Chain Ring Bolts / Nuts
Bottom Bracket	118mm Sealed Cartridge Isis BB
Pedals	Platform Pedal 9/16″
Brake	Tektro 836AL
Brake Lever	Tektro ML330
Chain	KMC Z33 1/2″x3/32″
Gearing	Insight 41 Tooth 4 Bolts 104mm 1/2″x3/32″ 5mm Alloy Ring
Extras	Chain Tensionner Insight Twin Hole Laser Etched Logo

Weight: 22.8 LBS / 10,36 KG WITHOUT PEDAL

Additional Information

Barcode	140203
Special Shipping Group	Oversized_Items

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE	HEIGHT	TYPICAL AGE
FRAME/BIKE SIZE: MICRO	HEIGHT: 3' - 3'7"	TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI	HEIGHT: 3'4" - 4'	TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR	HEIGHT: 3'10" - 4'5"	TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT	HEIGHT: 4'2" - 4'9"	TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL	HEIGHT: 4'6" - 5'2"	TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO	HEIGHT: 4'9" - 5'7"	TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL	HEIGHT: 5'6" - 6'1"	TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL	HEIGHT: 5'9" - 6'5"	TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL	HEIGHT: 6'3" - 6'9"	TYPICAL AGE:
