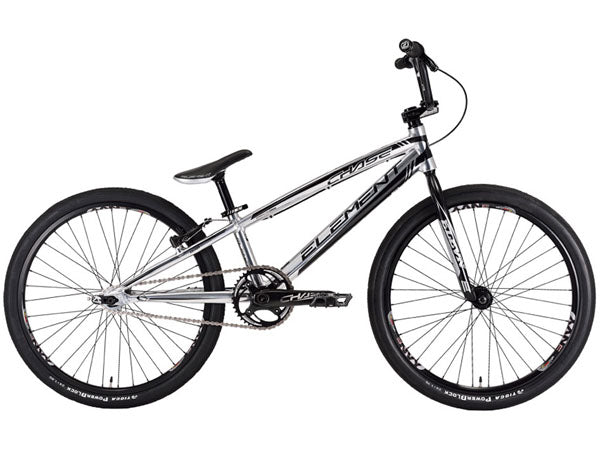

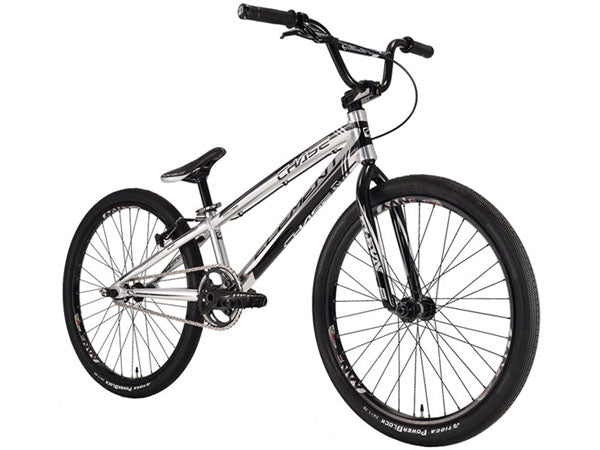

Chase Element BMX Bike-Pro 24"-Polished

The Chase Bicycles Element Pro 24" complete BMX bike features the Chase 7005 T6 frame, Element 2-pc hollow alloy cranks, sealed Element cassette hubs and Elevn 20mm fork.

FRAME SPECS:
Top tube Length: 21.5"
Chainstay Length: 15.25”
Headtube Angle: 73°
Seattube Angle: 69.5°

Recommended Rider Height: 5' 8" - 6'

FRAME: Chase Element 7005 T6 Alloy Polished, Integrated Head Tube, 1-1/8", Water Decals
FORK: Elevn PUL 20mm Cr-mo Fork, 1-1/8" Steer Tube With Tapered, Butted, Heat Treated, Alloy Top Cap
HEADSET: FSA Impact Integrated Sealed Bearing
HANDLEBAR: Chase Element Bar 5.75" Rise, 11° Back Sweep & 2.5° Up Sweep
GRIPS: Insight C.O.G.S 145mm Alloy Clamps Laser Etched Logo, PVC End Plug
STEM: Chase Element 50mm 6061 T6 Alloy Laser Etched Logo
BB: Outboard BB Cups BC 1.37"x68/73mm Cartridge Bearings
CHAINRING: Kingstar 41 Tooth 4 Bolts 104mm 1/2"x3/32" 5mm Alloy Ring
CRANK: Chase Element 2 Pieces Crank 180mm Hollow Alloy Arm, 4 Bolts Spider, Cr-mo Pedal Inserts, Laser Etched Logo, Alloy Chain Ring Bolts and Nuts
PEDAL: Platform Pedal 9/16"
CHAIN: KMC Z610HX 1/2"x3/32"
COG: 16 Tooth
FRONT HUB: Chase Element 20mm Thru Axle Hub, 36H, Sealed Bearing
REAR HUB: Chase Element 10mm Cassette Hub 36H, Sealed Bearing, Steel Cassette Body, 4 Pawl, 96 Points Of Engagement
SPOKES: 14 Gauge
NIPPLES: Brass Nipples
FRONT RIM: Sun Rims Envy Front 36H 1.75" With Eyelet
REAR RIM: Sun Rims Envy Front 36H 1.75" With Eyelet
FRONT TIRE: Tioga PowerBlock 1.75"
REAR TIRE: Tioga PowerBlock 1.60"
TUBES: 24×1.50"-1.75"
BRAKE LEVER: Shimano Deore LX
BRAKE CALIPER: Shimano Deore LX
SADDLE: Chase Element Pivotal, Embossed Leather, Hollow Bolt
SEAT POST: Chase Element Pivotal 27.2mm 320mm Polished Alloy Laser Etched Logo
SEAT CLAMP: Chase Element QR Alloy 31.8mm Laser Etched Logo
CHAIN TENSIONNER: Kingstar Twin Hole Laser Etched Logo

WEIGHT:    22.13lbs / 10.03kgs

NOTE: As with any complete bike, J&R Bicycles recommends that you have a professional bicycle store build your bike. Bikes ordered through mail-order come partially assembled and need to be inspected and assembled by a bicycle mechanic. Failure to do so may void the manufacture's warranty. Manufacture's warranties differ for every brand. You can check the brand's website for warranty information.
