CCH Super Cup Aluminum BMX Race Frame-White - 1
CCH Super Cup Aluminum BMX Race Frame-White - 2
CCH Super Cup Aluminum BMX Race Frame-White - 3

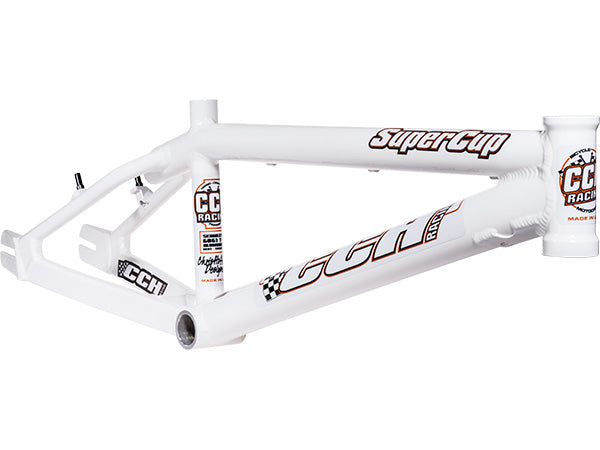

CCH Super Cup Aluminum BMX Race Frame-White

CCH
Sold Out

About This Product: CCH Super Cup Aluminum BMX Race Frame-White

The CCH Racing Super Cup BMX race frames are U.S.A. Made from 6061 seamless aluminum tubing and heat-treated to T-6 hardness for improved strength and stiffness. The frames feature aggressive racing geometry, oversized tubing, unique CCH wishbone design, and their exclusive "closed-loop" boxed chainstay.

FEATURES

  • Seamless 6061 T-6 heat-treated tubing
  • U.S.A. Made
  • CCH wishbone design

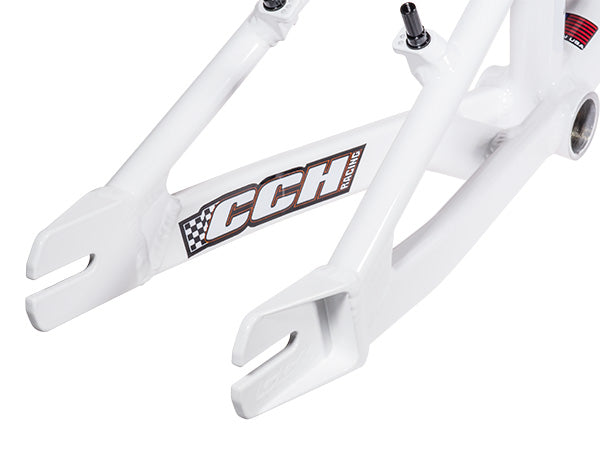

  • Exclusive "closed-loop" boxed chainstay
  • Aggressive race geometry

SPECIFICATIONS

  • USE: Race
  • MATERIAL: 6061 aluminum

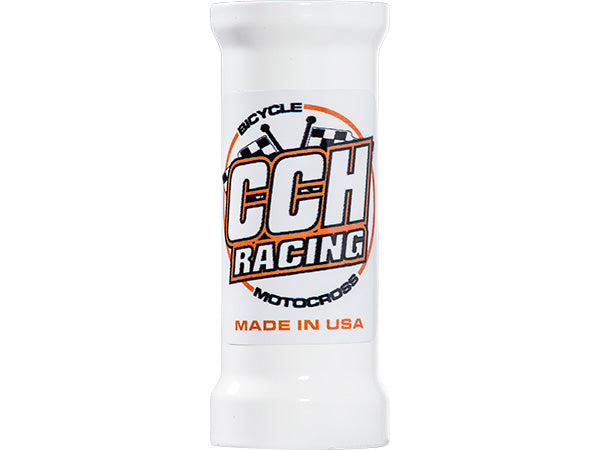

  • HEADSET STYLE: 1" standard on Junior, Integrated 1-1/8" 45°/45° on Expert and Larger
  • BRAKE MOUNTS: V-Brake
  • BB SHELL: Euro

GEOMETRY

CCH Super Cup Aluminum BMX Race Frame-White Geometry Chart
SIZE TT CS HS HA SA SC SP WEIGHT
SIZE: JUNIOR TT: 18.5" CS: 13.75" HS: 1" (standard) HA: 72.5° SA: 70° SC: 1" (25.4mm) SP: 22.2mm WEIGHT: 2.65lbs/1.2kg
SIZE: EXPERT TT: 19.5" CS: 14" HS: 1-1/8" (integrated) HA: 73° SA: 71° SC: 1" (25.4mm) SP: 22.2mm WEIGHT: 3lbs/1.36kg
SIZE:EXPERT XL TT: 20" CS: 14" HS: 1-1/8" (integrated) HA: 73° SA: 71° SC: 1" (25.4mm) SP: 22.2mm WEIGHT: 3.1lbs/1.4kg
SIZE: PRO TT: 21" CS: 14.75" HS: 1-1/8" (integrated) HA: 74.5° SA: 71° SC: 1-1/4" (31.8mm) SP: 27.2mm WEIGHT: 3.7lbs/1.68kg
SIZE: PRO XL TT: 21.5" CS: 14.75" HS: 1-1/8" (integrated) HA: 74.5° SA: 71° SC: 1-1/4" (31.8mm) SP: 27.2mm WEIGHT: 3.8lbs/1.72kg
SIZE: PRO XXL TT: 22" CS: 14.75" HS: 1-1/8" (integrated) HA: 74.5° SA: 71° SC: 1-1/4" (31.8mm) SP: 27.2mm WEIGHT: 3.9lbs/1.77kg
SIZE: PRO XL 24" TT: 21.5" CS: 15.75" HS: 1-1/8" (integrated) HA: 73.5° SA: 71° SC: 1-1/4" (31.8mm) SP: 27.2mm WEIGHT: 4lbs/1.81kg

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
