CCH Super Cup Aluminum BMX Race Frame-Black - 1
CCH Super Cup Aluminum BMX Race Frame-Black - 2
CCH Super Cup Aluminum BMX Race Frame-Black - 3

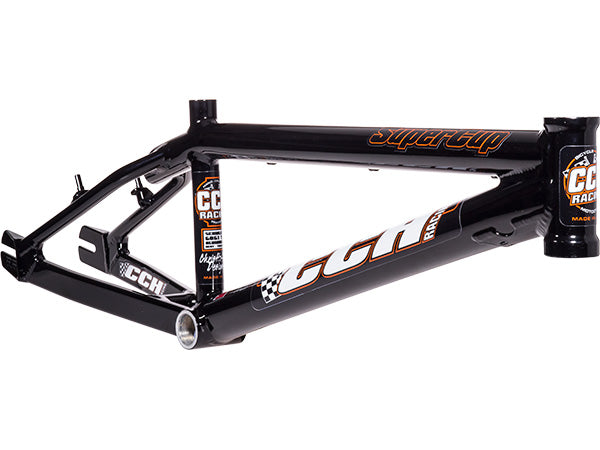

CCH Super Cup Aluminum BMX Race Frame-Black

Sold Out

About This Product: CCH Super Cup Aluminum BMX Race Frame-Black

The CCH Racing Super Cup BMX race frames are U.S.A. Made from 6061 seamless aluminum tubing and heat-treated to T-6 hardness for improved strength and stiffness.  The frames feature aggressive racing geometry, oversized tubing, unique CCH wishbone design, and their exclusive "closed-loop" boxed chainstay.

FEATURES:
*Seamless 6061 T-6 heat-treated tubing
*U.S.A. Made
*CCH wishbone design

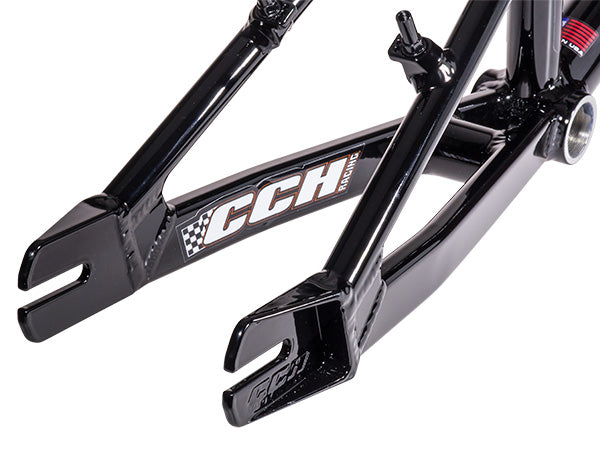

*Exclusive "closed-loop" boxed chainstay
*Aggressive race geometry

SPECS:
USE: Race
MATERIAL: 6061 aluminum
HEADSET STYLE: 1" standard on Junior, Integrated 1-1/8" 45°/45° on Expert and Larger
BRAKE MOUNTS: V-Brake
BB SHELL: Euro
TT: Top Tube | CS: Chain Stay | SA: Seat Angle | HA: Head Angle | H/S: Headset size
SIZE
TT
CS (center)
H/S HA SA  SEAT CLAMP SEAT POST WEIGHT
JUNIOR 18.5" 13.75" 1" (standard) 72.5° 70° 1" (25.4mm) 22.2mm 2.65lbs/1.2kg
EXPERT 19.5" 14" 1-1/8" (integrated) 73° 71° 1" (25.4mm) 22.2mm 3lbs/1.36kg
EXPERT XL 20" 14" 1-1/8" (integrated) 73° 71° 1" (25.4mm) 22.2mm 3.1lbs/1.4kg
PRO 21" 14.75" 1-1/8" (integrated) 74.5° 71° 1-1/4" (31.8mm) 27.2mm 3.7lbs/1.68kg
PRO XL 21.5" 14.75" 1-1/8" (integrated) 74.5° 71° 1-1/4" (31.8mm) 27.2mm 3.8lbs/1.72kg
PRO XXL
22" 14.75" 1-1/8" (integrated) 74.5° 71° 1-1/4" (31.8mm) 27.2mm 3.9lbs/1.77kg
PRO XL 24" 21.5" 15.75"  1-1/8" (integrated) 73.5°  71°  1-1/4" (31.8mm) 27.2mm  4lbs/1.81kg

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
