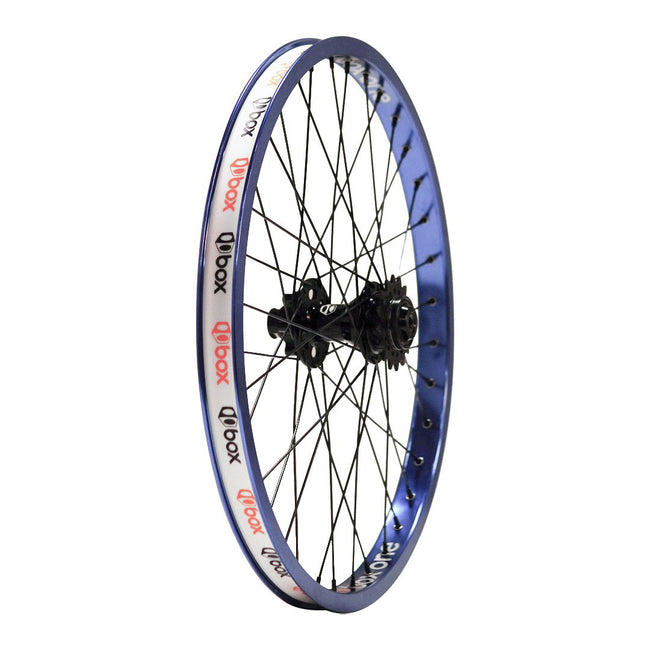

Box Three Alloy Disc Pro BMX Race Wheel-Rear-20x1.75" - 1

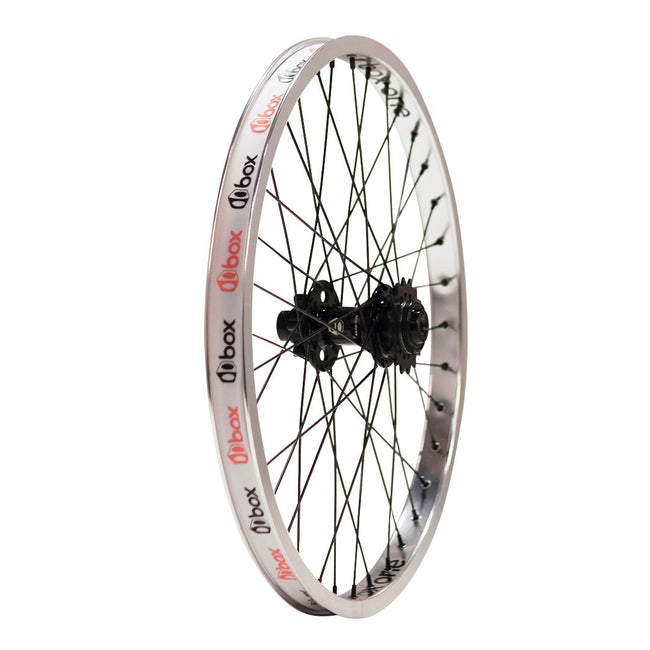

Box Three Alloy Disc Pro BMX Race Wheel-Rear-20x1.75" - 2

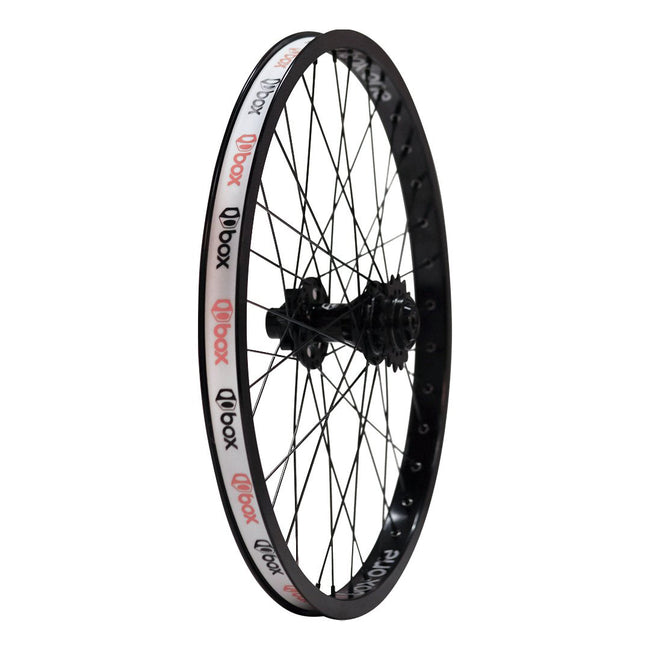

Box Three Alloy Disc Pro BMX Race Wheel-Rear-20x1.75" - 3

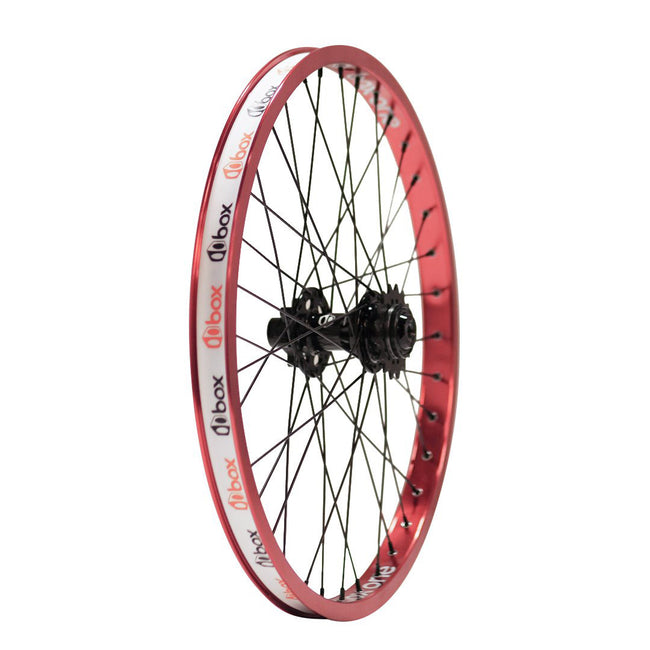

Box Three Alloy Disc Pro BMX Race Wheel-Rear-20x1.75" - 4

Box Three Alloy Disc Pro BMX Race Wheel-Rear-20x1.75"

Save 20%
Sold Out

About This Product: Box Three Alloy Disc Pro BMX Race Wheel-Rear-20x1.75"

The Box Three Pro Alloy Disc Rear Wheel-20x1.75"-36H might be Box Three, but they’ve snuck in some Box One parts to really put this wheel on top. Featuring Box One Alloy Hoops with a low profile to shave off unneeded material and makes these some seriously lightweight rims. The hub is a Box Three Pro Disc Hub with a 6061 aluminum shell and 120 point engagement system. It features a six bolt rotor mount for all your disc braking needs. Rounding out the trio are a set of Box One Pro Spokes which are 14 gauge on the ends and 15 gauge in the middle and to reduce weight even further aluminum nipples are included.

FEATURES

  • 3/Pawl - 120 Point of Engagement System
  • 6 Bolt Disc Brake Compatible Rear Hub
  • 10mm Front and Rear Axles
  • 16 Tooth Cog Lockring and Spacers Included

COMPATIBILITY

  • 6 Bolt Rotor
  • Hex Lab 20x1.75 Tires
  • Box One X Fork
  • Box One XL Fork
  • Box One X2 Fork (with adapters)
  • Box One X5 Fork (with adapters)

SPECIFICATIONS

  • RIMS: Box One™
  • HUBS: Box Three™
  • LACING: 3-Cross
  • SPOKES: Box One Pro Spokes
  • NIPPLES: Box One Pro Alloy Nipples

Wheel Sizing Charts

Wheel Sizing Charts
RIDER WEIGHT RIDER AGE RECOMMENDED SIZE
RIDER WEIGHT: > 55 lbs RIDER AGE: > 5 RECOMMENDED SIZE: 18 x 1 inch
RIDER WEIGHT: 55 - 80 lbs RIDER AGE: 5 - 10 RECOMMENDED SIZE: 20 x 1.125 inch 24 x 1.125 inch
RIDER WEIGHT: 80 - 115 lbs RIDER AGE: 9 - 12 RECOMMENDED SIZE: 20 x 1.375 inch 24 x 1.375 inch
RIDER WEIGHT: 115 - 145 lbs RIDER AGE: 12 - 14 RECOMMENDED SIZE: 20 x 1.5 inch 24 x 1.5 inch
RIDER WEIGHT: 145 lbs < RIDER AGE: 14 < RECOMMENDED SIZE: 20 x 1.75 inch 24 x 1.75 inch
