About This Product

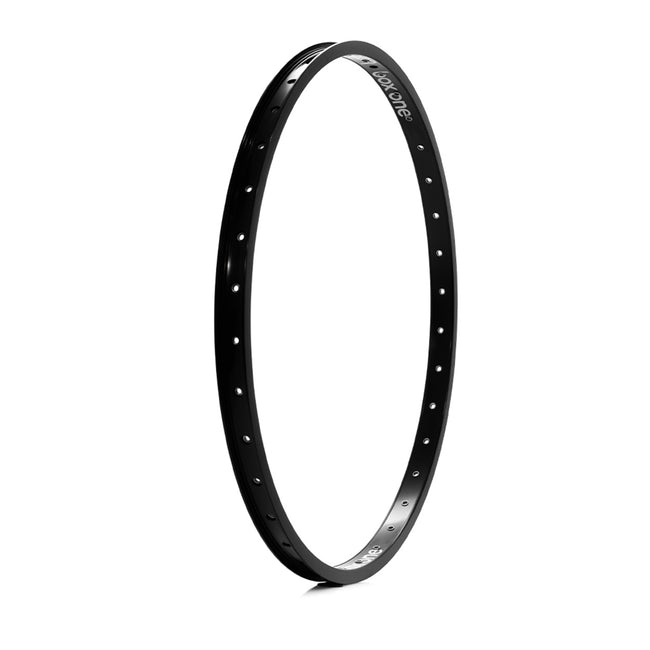

The Box One 507 Rim - Rear - 36H - 24x1.75" is as low-profile as it gets. All the better to be lightweight and speedy. Featuring double walled aluminum, eyeleted construction. This rim does have a sidewall braking surface, so it can and should be used on the rear of your bike.
FEATURES
- Optimized Internal Geometry
- Machined Brake Track
- Stainless Steel Eyelets
- Brake (Rear) and Brake-Less (Front) Profiles
- Low Profile Design
- Schrader Valve Hole
COMPATIBILITY
- Box One X2 Pro Carbon 1 1/8" cro-mo steerer 24" X 20mm fork
- Box One X5 Pro Carbon 1.5" to 1 1/8" alloy steerer 24" X 20mm fork
- Box One XL Pro Lite Carbon 1 1/8" alloy steerer 20” X 10mm fork
- Box One X Pro Carbon 1-1/8" cro-mo steer 24" X 10mm fork
- Box One Quantum Hubset 36h Black
SPECIFICATIONS
- WEIGHT: 432g
- HOLE DRILLING: 36
- INTERNAL RIM WIDTH: 22.5mm
- EXTERNAL RIM WIDTH: 28mm
- RIM HEIGHT: 14.5mm
- ERD: 494
- MATERIAL: 6061 Aluminum
- BEAD DIAMETER: 507mm
